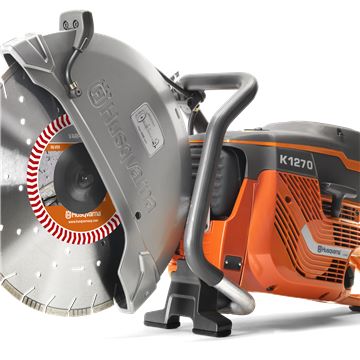

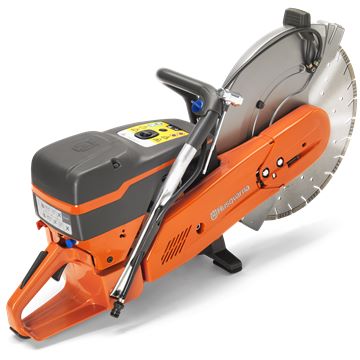

**K1270 Replaces the K1260**
Some jobs require exceptional power. The K 1270 is a real powerhouse with an impressive 5,8 kW output, turning your heaviest cutting jobs into a fast and effective operation. Suitable for road works when used with the corresponding KV970/1270 trolley. The trolley also means you can fully concentrate on the cutting job.
FEATURES
- Reduced wear: Reduced wear thanks to the drive belt with fully sealed transmission, which keeps out the cutting dust.
- Superior power with low emissions: Patented X-torqTM engine that uses air to flush out the cylinder provides exceptional power but keeps fuel consumptions and emissions low.
- Cuts close to walls or ground: The cutting arm is reversible which lets you cut closer to walls or the ground. The drive belt has a fully sealed transmission. This keeps out cutting dust etc, reducing wear.
- Magnesium blade guard: Contributes to a light weight which gives an improved power-to-weight ratio. New stepless adjustment makes it easier to change cutting position.
Applications
- Can be used for a variety of cutting applications including curbstones and pavers in landscaping, metal/pipes in installation work, concrete in buildings as well as roadwork applications.
Benefits
- SmartTension, semi-automatic belt tensioning*
- Optimized engine performance and 5% fuel savings through new efficient cylinder design, digital ignition system and X-Torq® engine technology.
- DEX, dust suppression system, makes it easy to ensure dust is reduced while minimizing water consumption and slurry.
Engine
- Output power: 7.8 hp
- Cylinder displacement: 7.25 cu.inch
- Electrode gap: 0.02 in
Cutting equipment
- Cutting depth, max: 5.7 in
- Blade diameter, max: 16 in
- Arbor diameter: 0.8/1 in
- Blade thickness, max: 0.2 in
- Peripheral speed, max: 18000 fpm
Dimensions
- Product size width: 9.57 in
- Product size height: 18.23 in
- Weight: 30.2 lbs
Sound and noise
- Sound power level, guaranteed (LWA): 117 dB(A)
- Sound pressure level at operators ear: 104 dB(A)
Vibrations
- Vibrations left/front handle: 6.9 m/s²
- Vibrations right/rear handle: 6.3 m/s²
Certifications
- Cert machine dir. 2006/42/EC Decl. No.: EURO TEST CERTIFICATE SEC/10/2287
