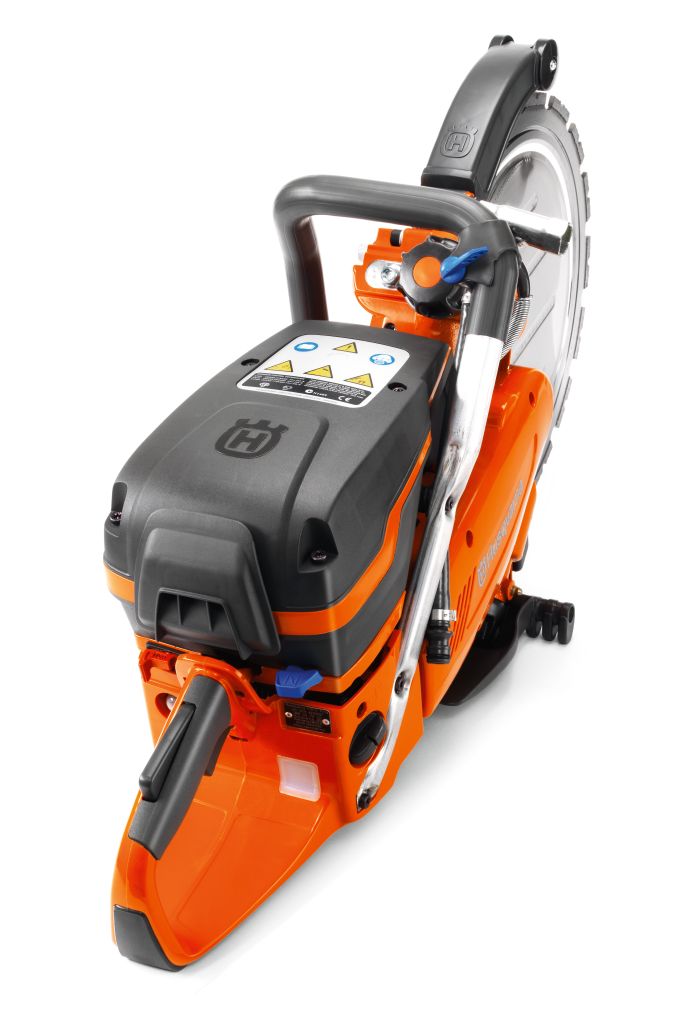

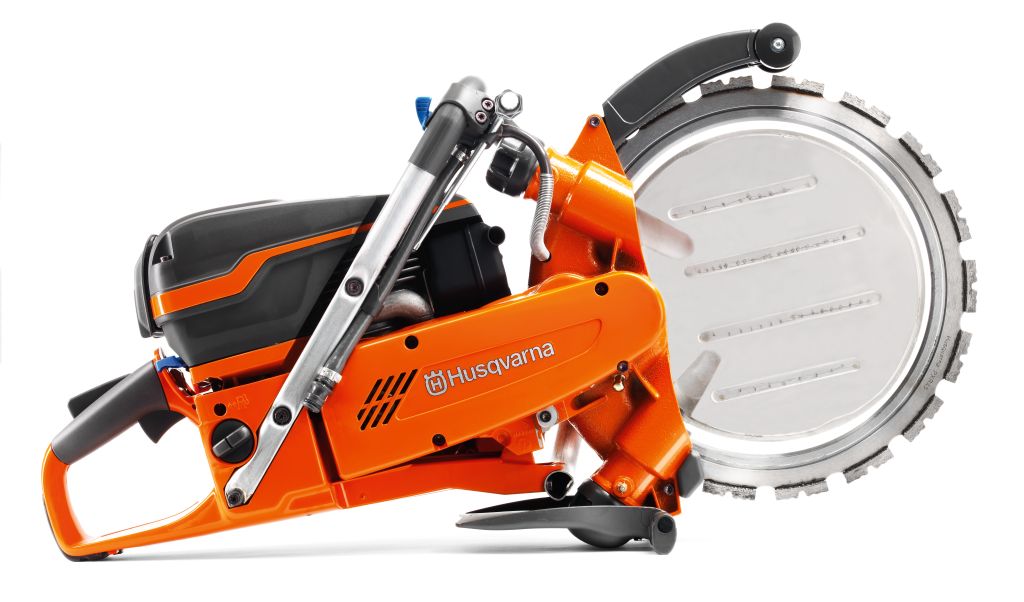

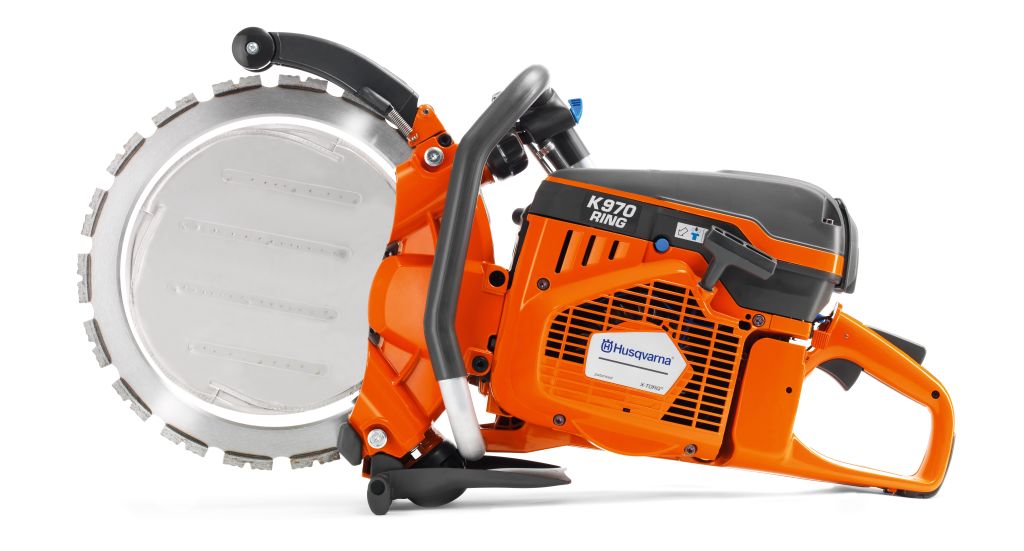

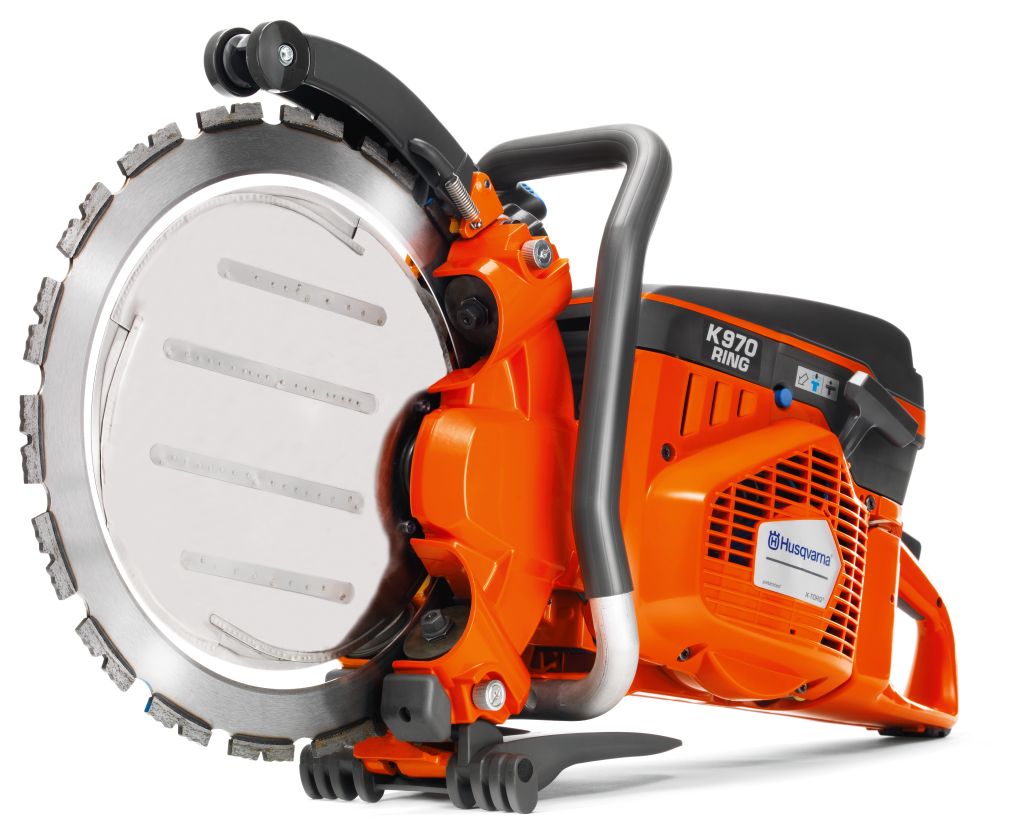

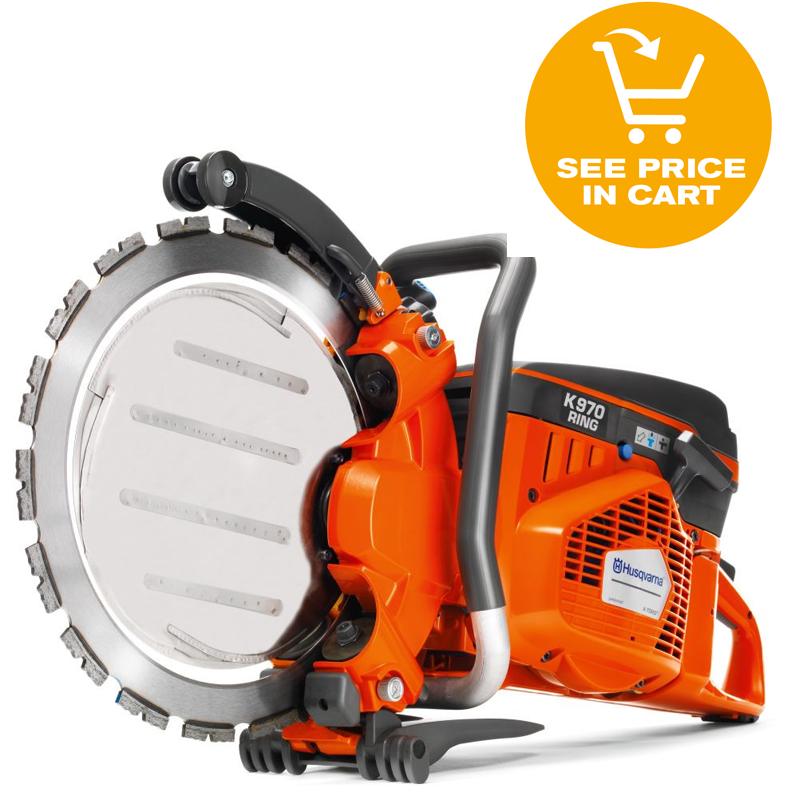

The Husqvarna K 970 Ring is the world’s first gas-powered cutter able to make 10.6" deep cuts with a 14" blade. This may seem impossible to anyone who uses standard power cutters, since 14" blades can normally only achieve a cutting depth of 5". However, we simply combined our unique and patented RingSaw technology, where the blade is driven from the periphery instead of its center, with the strong, easy to handle gas-powered cutter, the Husqvarna K 970. With the K 970 Ring, you can have the best of both worlds: the tried and tested ringsaw technology with its incredible cutting depth, and the ease of use and versatility of a gas-powered cutter.
Features:
- Long service intervals: A strong Poly-V belt combined with our maintenance-free DuraStarter™ and efficient filter-system Active Air Filtration™ ensure long service intervals.
- Deep cutting: Irregular deep cutting.
- Light and powerful: A light, compact and powerful machine with superior power-to-weight ratio.
- Sturdy and reliable: Less sensitive to outdoor conditions and fuel variations, thanks to the cylinder design and muffler with integrated heat deflector.
Applications
- Designed to cut deep, using a step-cut method, when you need to make/adjust openings.
Benefits
- Optimized engine performance and 5% fuel savings through new efficient cylinder design, digital ignition system and X-Torq(R) engine technology.
- The Poly V-belt provides better power transmission, less re-tensioning and increased product life.
- The adjustable water valve makes it easy to ensure dust is reduced while minimizing water consumption and slurry.
- New two-bolt guide bar solution on the K 970 Chain makes tensioning easy.

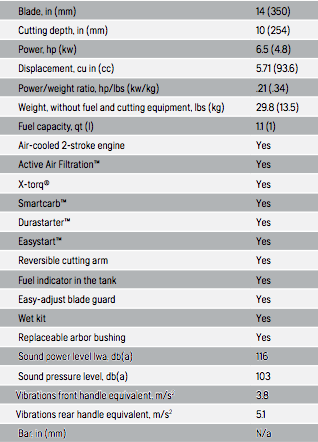

Engine
- Output power: 6.5 hp
- Cylinder displacement: 5.71 cu.inch
- Electrode gap: 0.02 in
Cutting equipment
- Cutting depth, max: 10.6 in
- Blade diameter, max: 14 in
- Blade thickness, max: 0.22 in
- Peripheral speed, max: 11000 fpm
Dimensions
- Product size width: 8.82 in
- Product size height: 16.96 in
- Weight: 30.4 lbs
Sound and noise
- Sound power level, guaranteed (LWA): 115 dB(A)
- Sound pressure level at operators ear: 104 dB(A)
Vibrations
- Vibrations left/front handle: 2.7 m/s²
- Vibrations right/rear handle: 3.4 m/s²
Certifications
- Cert machine dir. 2006/42/EC Decl. No.: EURO TEST CERTIFICATE SEC/10/2286
