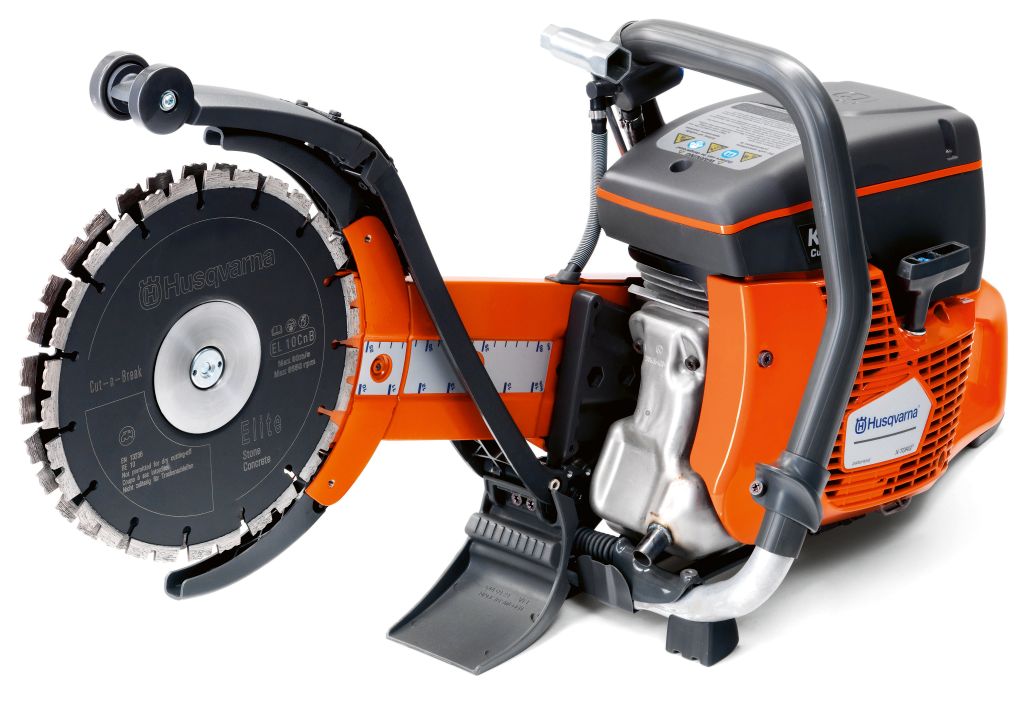

Our Cut-n-Break method is the natural choice when you need to cut deep without overcutting at the corners. The K 760 Cut-n-Break enables you to cut as deep as 16" from one side. The two high-speed blades make a core in the saw cut, which can then easily be broken off using the accompanying breaking tool. This way you easily work your way through the material, at a very low diamond tool and maintenance cost. Delivered with twin blades and a breaking tool.
Applications
- Designed to cut deep, using a step-cut method, when you need to make/adjust openings.
Benefits
- Optimized engine performance and 5% fuel savings through new efficient cylinder design, digital ignition system and X-Torq® engine technology.
- The Poly V-belt provides better power transmission, less retensioning and increased product life.
- The adjustable water valve makes it easy to ensure dust is reduced while minimizing water consumption and slurry.
- New two-bolt guide bar solution on the K 970 Chain makes tensioning easy.
Features:
- High performing blades included: Twin blades, with a very stable core and cutting performance are delivered with the machine.
- Cost-efficient cutting method: With the unique cut-n-break method you can work your way through the material step-by step at a low tool cost.
- Optimized engine performance: Optimized engine performance through efficient cylinder design, digital ignition system and X-Torq® engine technology.
- Exceptional cutting depth: The long body and double cutting blades allow you to make cuts up to 16" deep.

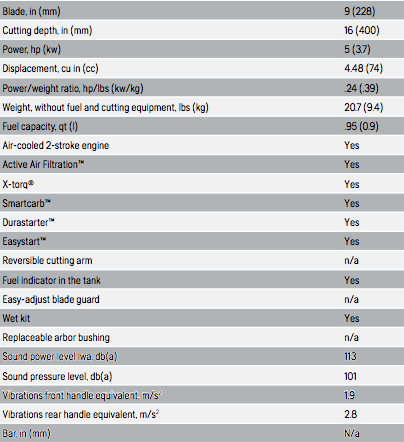

Engine
- Output power: 5 hp
- Cylinder displacement: 4.48 cu.inch
- Electrode gap: 0.02 in
Cutting equipment
- Cutting depth, max: 16 in
- Blade diameter, max: 9 in
- Peripheral speed, max: 16000 fpm
Dimensions
- Product size width: 9.69 in
- Product size height: 17.56 in
- Weight: 21.2 lbs
Sound and noise
- Sound power level, guaranteed (LWA): 115 dB(A)
- Sound pressure level at operators ear: 101 dB(A)
Vibrations
- Vibrations left/front handle: 1.9 m/s²
- Vibrations right/rear handle: 2.8 m/s²
Certifications
- Cert machine dir. 2006/42/EC Decl. No.: EURO TEST CERTIFICATE SEC/13/2369
