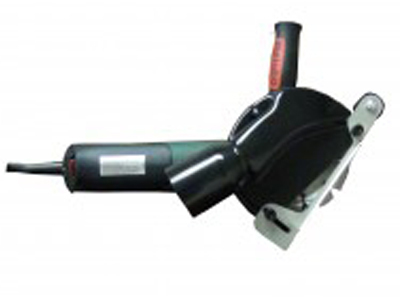

The U.S.SAWS 5” Crack chaser is a handheld crack chasing saw designed to rout out random cracks before filling. This saw is also used for cutting repair patches in concrete surfaces where a dust-free environment is needed. It can also be used for joint cleanout and joint fill removal in areas where the larger joint cleanout saws will not fit. The full metal blade guard protects the operator, and the polycarbonate dust shroud is durable enough to hold up to abrasive concrete dust. This Premium model is powered by a Metabo WEV15-125 13.5 Amp 2,800-9,600 RPM variable speed grinder and will cut up to 1-1/4” deep with a 5” blade. This saw can use a 4”, 4.5”, or 5” blade.
Hand-Held Tuckpointer/Crack Chaser Assembly
- Small and lightweight system for repair applications and for cutting out mortar or grout joints
- Cuts horizontally or vertically
- Controls dust for cleaner work site when used with optional vacuum system
- 1-1/4" maximum cutting depth
- Assembly includes grinder, shroud and adapter ring
|
Part Number |
SX55014 |
|
Grinder Make/Model |
5" Metabo W9-115 |
|
Power |
8.5 Amp Electric |
|
RPM |
10,500 |
|
Power Requirements |
120V, 60Hz |
|
Max Cutting Depth |
1-1/4" |
|
Blade Diameter |
4", 4.5" or 5" Dry Diamond |
|
Blade Width |
.090"*, .125"*, .250", .375" |
|
Blade Arbor |
7/8" |
|
* Requires spacer (sold separately) |
|
5" Crack chaser Assembly with Metabo 15-125 13.5 Amp Grinder
- US Saws 5" Crack Chaser is a handheld saw designed for routing out random cracks or cutting concrete while collecting the dust.
- Powered by a Metabo 15-125 13.5 amp 2,800-9,600 RPM grinder which is good for heavy duty continual use.
- Metal blade guard for safety
- Polycarbonate dust collection shroud is extremely abrasion resistant to hold up to abrasive concrete dust and had a 5 year warranty
- Meets OSHA dust collection requirements when used with approved dust collector
- Compatible with 4", 4.5" and 5" Blades including "V" blades
Small and lightweight system for vertical or horizontal surface crack repair applications
Works great for cutting out mortar or grout joints
Controls dust for a cleaner work site when used with an optional vacuum system
1-1/4" maximum cutting depth
Works great for cutting out mortar or grout joints
Controls dust for a cleaner work site when used with an optional vacuum system
1-1/4" maximum cutting depth
Assembly includes: grinder, shroud, and adapter ring
|
Part Number |
SX55010 |
|
Grinder Make/Model |
5" Metabo WE15-125 |
|
Power |
13.5 Amp Electric Variable Speed |
|
RPM |
2,800-9,600 |
|
Power Requirements |
120V, 60Hz |
|
Max Cutting Depth |
1-1/4" |
|
Blade Diameter |
4", 4.5" or 5" Dry Diamond |
|
Blade Width |
.090"*, .125"*, .250", .375" |
|
Blade Arbor |
7/8" |
|
* Requires spacer (sold separately) |
|
