**Replaces K 1260**

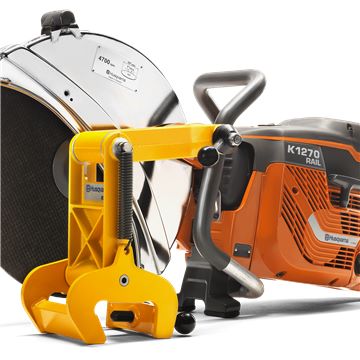

Cutting a rail track takes power, precision and speed. The K 1270 Rail is the market's most powerful cutter, customised for railways, tram tracks and metro systems. It cuts fast and straight, the attachment mounts quickly to the rail and the double attachment mountings means you can cut from any direction.
Applications
- Can be used for a variety of cutting applications including curbstones and pavers in landscaping, metal/pipes in installation work, concrete in buildings as well as roadwork applications.
Benefits
- SmartTension, semi-automatic belt tensioning*
- Optimized engine performance and 5% fuel savings through new efficient cylinder design, digital ignition system and X-Torq(R) engine technology.
- DEX, dust suppression system, makes it easy to ensure dust is reduced while minimizing water consumption
- and slurry.
Features:

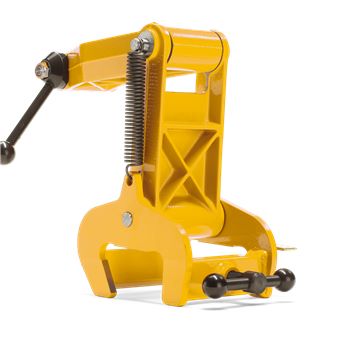

- Perfect right-angle cuts: The RA 10 attachment fastens to the track to ensure a perfect right-angle cut.
- Cutting from both sides: The RA 10 attachment is included as standard and allows cutting from both sides of the track.
- Fast, stable mounting: Fast, stable mounting of the attachment onto the track.
- Superior power with low emissions: Patented X-torqTM engine that uses air to flush out the cylinder provides exceptional power but keeps fuel consumptions and emissions low.
Engine
- Output power: 7.8 hp
- Cylinder displacement: 7.25 cu.inch
- Electrode gap: 0.02 in
Cutting equipment
- Cutting depth, max: 5.7 in
- Blade diameter, max: 16 in
- Arbor diameter: 1 in
- Blade thickness, max: 0.2 in
- Peripheral speed, max: 18000 fpm
Dimensions
- Product size width: 9.57 in
- Product size height: 18.50 in
- Weight: 46.7 lbs
Sound and noise
- Sound power level, guaranteed (LWA): 117 dB(A)
- Sound pressure level at operators ear: 104 dB(A)
Vibrations
- Vibrations left/front handle: 5.3 m/s²
- Vibrations right/rear handle: 5.4 m/s²
Certifications
- Cert machine dir. 2006/42/EC Decl. No.: EURO TEST CERTIFICATE SEC/10/2287
