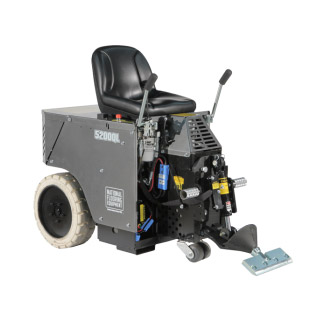

The 5200QL (Quick Load) ride-on floor scraper is the only replaceable battery machine in the industry. Easily installed, the rear accessed battery pack allows convenient changing and transport. This machine is great for commercial surface removal and preparation, and it is quiet and compact enough for residential jobs.
Features
SAFETY
- Automatic kill switch triggered when the operator seat is vacant.
- E-stop knob for safety
COMFORT
- Ergonomic design includes movable foot pegs and padded seat that allows for optimal operator comfort and the best possible line of sight.
PERFORMANCE
- Precise hydraulic steering for maneuvering in tight spaces, zero turn radius
- Quick-change swivel head
- Extra weight compartments
- Larger/deepened forklift pockets
- Nonmarking tires
- Trailer hitch
- Flip-up back lid for quick and easy battery changing
- Front debris deflector protects machine from loose material
- Front caster wheels allow increased maneuverability in tight spaces
Additional Features
- Quick battery replacement
- 100 amp hour battery system allows for longer operation time and increased cycle life
- Machine continues to operate while a second battery pack is charging
- Battery technology eliminates toxic and harmful fumes for indoor jobs
- Power packs easily slide out the back of the machine and onto a cart for effortless transportation; requiring no heavy lifting
- Zero turn radius
- Precise hydraulic steering for maneuvering in tight spaces
- Fits through standard doorways and elevators
- Unique swivel head keeps the blade in contact with the floor
- Sliding front plate allows for precision blade angle and pitch adjustment
- Quick and easy cutting head and blade change
- Ergonomically designed controls for comfort, safety, and easy handling
- With no belts or gears, this scraper boasts low maintenance costs while maximizing production.
- Patent No. 6,813,834 - 7,562,412 - 7,082,686
Specifications
- Width: 24.75"
- Height: 46.5"
- Length: 57"
- Weight: 1,760 lb
- Removable Weight: 370 lb front, 75 lb rear
- Weight (machine only): 1,315 lb
- Speed: up to 120 ft/min up to 36.6 m/min
- Voltage: 115
- Frequency: 60 Hz
Included with the 5200QL
- 5110-100: Transport Wheels
- 402929: 3/4 x 1-1/8 Wrench
- 5200QL-500: Quick-load battery cart
Kit 5175 includes:
- 6277-BU: 45 degree, 3" x 12" self-scoring, bevel up
- 6284: 3" x 12" heavy-duty blade
- 7050-12: 12" cutting head
- 7079-2: 2" x 6" angle shank w/carbide tip
- One-year manufacturer's warranty on parts and labor
- Spec Sheet:
- Download Here
