Lavina L20GS7 Propane Grinder

$18,990.00
No reviews yet Write a Review
Adding to cart… The item has been added
SKU:
L20GS7
  • 2 Day Shipping on Diamonds

  • 30 Day Return Policy

  • Safe Payments

  • Amazing Selection

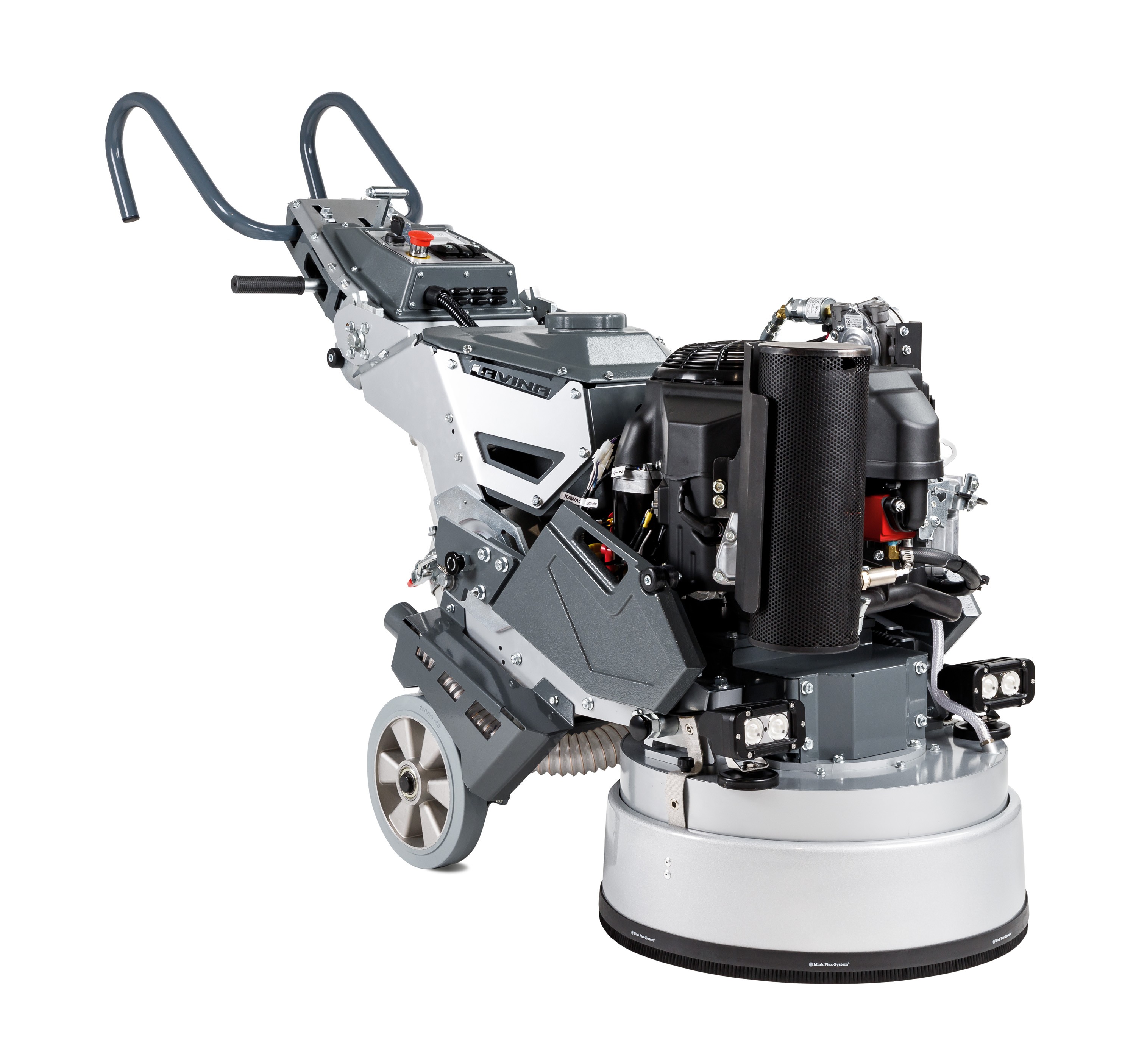

 The all-new 20-inch LAVINA S7 propane Grinder is the latest addition to the Lavina S7 lineup. It combines the compact 20-inch footprint with the new S7 features and upgrades to deliver superior performance.



S7 FEATURES

NEW SEALED & DUST-PROOF GRINDING HEAD

Longer service life and less maintenance.

  • Completely redesigned chain-driven planetary drive
  • New stronger timing belt
  • Upgraded shafts, seals and bearings
  • New lighter timing pulleys for better power transmission
  • New 2-piece aluminum main belt housing with belt inspection cover for longer belt life and less maintenance

NEW FRAME DESIGN

Better control, easier tool changes, and less vibrations.

  • New weights for faster position change
  • Redesigned frame allowing easier tool changes
  • New ergonomic handle design – faster adjustability and more positions
  • Rubber bushing used at head attachment points – less vibrations for user
  • Water tank cap
  • Internal storage compartment

Specification

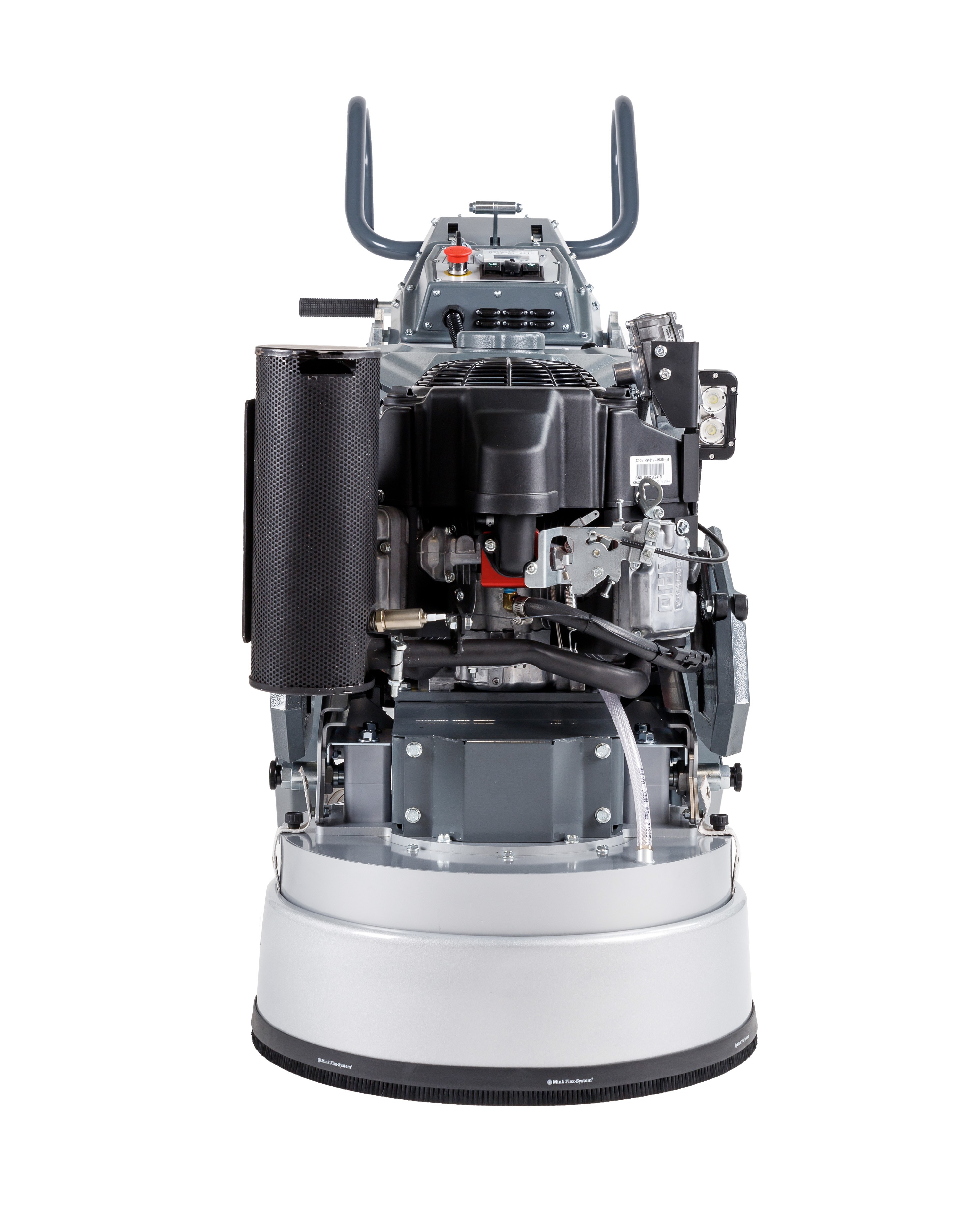

  • Engine: Kawasaki FS481V, 603 cc (18 hp / 13 kW)

  • Engine RPM: 2000-3600
  • Weight: 573 lbs / 260 kg
  • Grinding pressure: 286-363 lbs / 130-165 kg
  • Integrated weights included

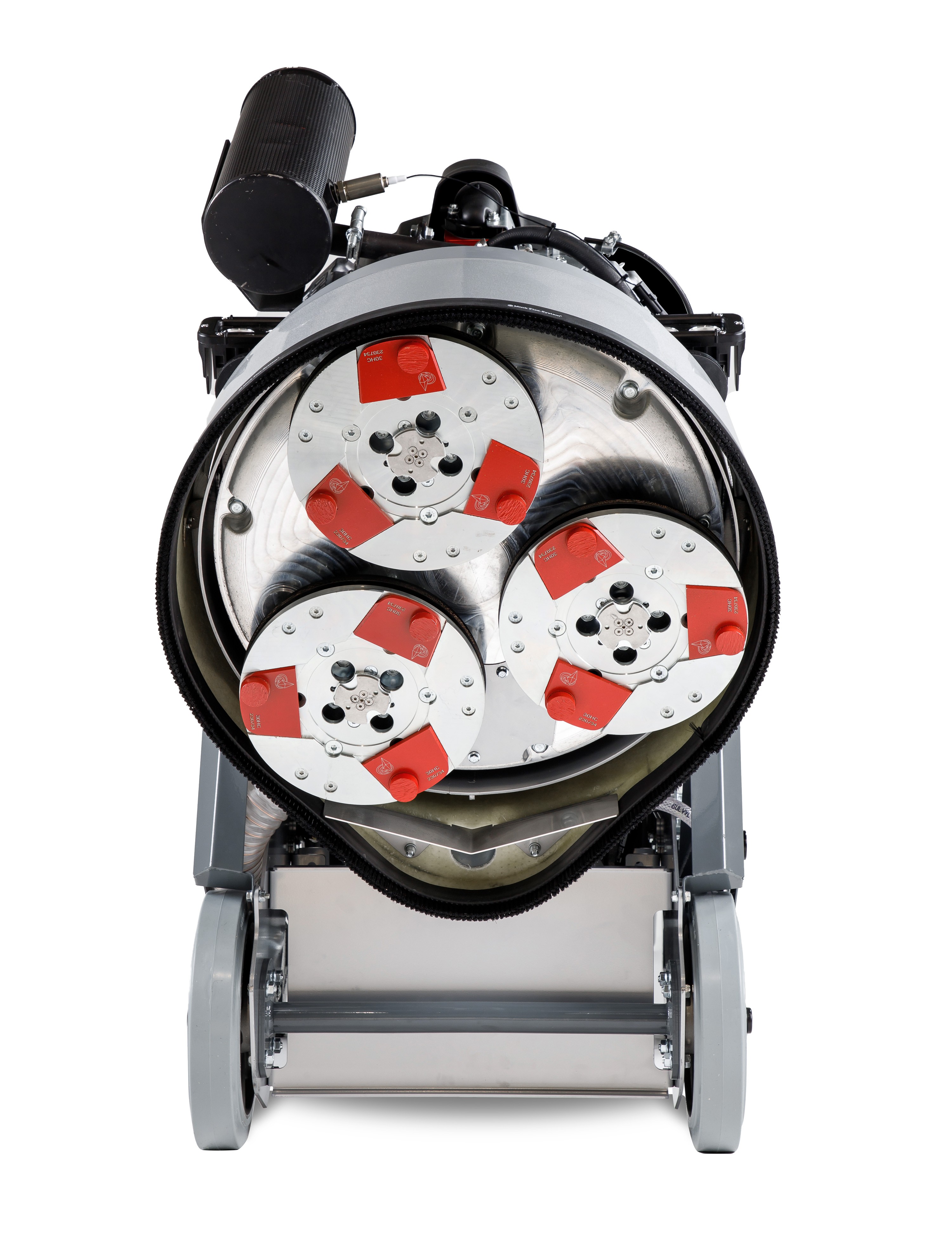

  • Heads: 3 x 9-inch / 225-mm
  • The heads have counter-clockwise / left rotation. Use the blue PCDs and Carbide Scrapers.

Grinding Tips



Always use VAPOR tanks only with LAVINA machines. Do not fill over 80%, as this can cause freezing and pressure regulator damage. When propane equipment is used indoors, proper air ventilation with access to FRESH AIR and proper equipment maintenance (oil and filter changes, etc) are of critical importance for operator’s safety. Operators should always carry CO monitor or badge. Read all warnings and information in your machine manual before operating any equipment.



  • Overlap around 25% of the machine work path between passes.
  • Check dust skirt to make sure it is all the way down, touching the floor to reduce airborne dust. Replace skirt if worn out or damaged.
  • When starting machine, hold it firmly and start moving (don’t keep it in one spot while heads are spinning).
  • When stopping machine, keep moving until the grinding heads stop.
  • To tilt machine up for tooling changes, move the weight back.
  • To add more grinding pressure and grind more aggressively, put the weights down / forward.



Spec Sheet:
Download Here
Lavina Equipment - Liability for Defects: Superabrasive warrants, from the time of delivery and receipt by the original customer, new and unused products sold by Superabrasive or Superabrasive-appointed distributors or dealers. Goods shall be free from defects in materials and workmanship. Superabrasive or a Superabrasive-appointed repair facility shall either replace or repair any defects in the Goods resulting from faulty design, materials, or workmanship. Products repaired or replaced during the warranty period shall be covered by the foregoing warranty for the remainder of the original warranty period, or ninety (90) days from date of the repair or shipment of the replacement, whichever is longer. Spare parts for repair will be either new or equivalent to new. Warranty period shall be 2 years from the time of delivery and receipt by the original customer, or 600 operating hours on the machine - whichever occurs first. Superabrasive will cover the shipping charges for the transportation of the machine to Superabrasive (or an approved repair facility) and back to the customer (within the contiguous 48 United States) in the event that the damage occurs and is reported within the first 90 days or 200 operating hours - whichever occurs first. Thereafter, the customer will have to cover the shipping charges to Superabrasive and back. Complaint: A complaint must be made to Superabrasive or a Superabrasive-appointed distributor or dealer within the warranty period. A valid warranty certificate, or other documents confming the date of delivery of said Goods, shall be presented at the time of the complaint. Limitation: Superabrasive will not warranty Goods after a period of 2 years from the time of delivery and receipt by the original customer, or 600 operating hours on the machine - whichever occurs first. Superabrasive shall not be liable for any defects that are caused by circumstances that occur after the Goods have been delivered and whilst the Goods are in the possession of the purchaser. Furthermore, the warranty does not include normal wear and tear or deterioration. Wear parts are not warranted. These include, but are not limited to, belts, bearings, wheels, filters,grommets, seals, foam heads, and spark plugs. Superabrasive is not liable for defects arising out of use of non-OEM parts. Shipping charges, if covered by Superabrasive, must be agreed upon in advance and approved by Superabrasive. After the first 90 days of the warranty period, or the first 200 operating hours - whichever occurs first epairs shall be carried out given that the purchaser at his own expense returns the Goods to Superabrasive, or to a Superabrasive-appointed distributor, dealer or repair facility.The warranty herein is non-transferable, and only applies to the original owner or purchaser of the machine. A warranty card must be submitted to Superabrasive within 30 days of purchase in order for the foregoing warranty to apply. The warranty card can be either mailed to 9411 Jackson Trail Rd, Hoschton, GA or filed electronically at http://www.superabrasive.us/machine-warranty.html. The Warranty is void if the purchaser has not followed the maintenance plan stipulated by the machine’s manual and warranty card. The warranty is void if the purchaser repairs said Goods himself, or if repairs are conducted by a repair facility that is not approved by Superabrasive. Superabrasive’s liability does not cover defects which are caused by faulty maintenance, incorrect operation, faulty repair by the purchaser, or by alterations conducted without Superabrasive’s prior written consent. The same applies to any alterations of the Goods or services performed by another party other than Superabrasive, a Superabrasive-appointed distributor, or a Superabrasive-approved repair facility. The warranty is not applicable on a defect that arises due to tools or parts that are not original to Superabrasive. Replaced defective parts shall be placed at Superabrasive’s disposal and shall become property of Superabrasive. If such defective parts are replaced within the warranty period, the shipping charges will be covered by Superabrasive. In warranty complaint cases, when no defects are found for which Superabrasive is liable, Superabrasive shall be entitled to compensation for the labor, material cost, and shipping charges, incurred by Superabrasive as a result of the complaint. Diamond Tools: Superabrasive warrants its diamond tools against defects in material and workmanship under normal and proper use for a period of 90 days from the date of delivery. Superabrasive makes this warranty only to the buyer who purchases the products directly from Superabrasive or its authorized distributor/dealer.
