T 7500 is an effective industrial dust extractor to match the grinding machines Husqvarna PG 820, PG 680 and PG 400 (3-phase) as well as shavers, shot blasters and saws. Ideal for heavy-duty work and exacting demands on dust extraction. T 7500 is equipped with a quiet, yet powerful turbine motor delivering exceptional airflow. The machine can deal with materials that are difficult to handle, such as grinding dust and demolition materials in a wide variety of applications. Has a reliable filter system with high collecting efficiency and a long filter life, and can deal with large quantities of fine dust. Comes with two oversized tested and certified HEPA class H13 filters and sock-style pre-filters providing nonstop grinding and a long service life. The pre-filters can be cleaned from outside of the tank via Jet Pulse negative air pressure. The Longopac® bag hose system ensures simple, dust-free bag changes.
- Durable design: Corrosion-resistant steel clamps, welded frame with dust bag platform and durable steel handle make it ready to serve for many years.
- Efficient filtration system: The three separate filtering stages result in longer working time between filter cleaning. The dust is filtered through a cyclone chamber, which separate the heaviest parts, up to 95% of the dust, before the washable main filter. The HEPA
- Excellent stability and mobility: The slim design, solid non-marking tires, swivel casters and hitch for attaching a separator allows for excellent mobility and stability.
- Easy and efficient filter cleaning: The Jet Pulse filter cleaning system ensures high continuous airflow thanks to easy and efficient cleaning of the conical main filter without opening the machine.
Motor
- Phases: 3-ph
- Voltage: 230 V
- Rated current: 24.2 A
- Rated input power: 7.5 kW
Dimensions
- Weight: 206 kg

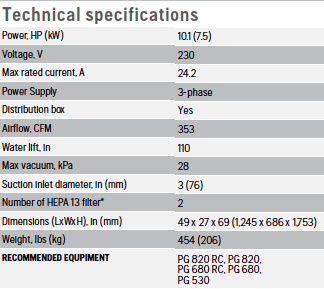

Specifications
- Air requirement: 600 m³/h
Three-Phase T7500 Replacement Parts
- 33' x 3" Hose
- 25' x 2" Hose
- 2-piece wand (2")
- Floor Tool (2" x 18")
- Rubber Blade Set
- Product Brochure:
- T7500 Product Brochure
- CFM:
- 353
- Tube Filter (sq ft):
- 25
- HEPA Filter (sq ft):
- 54
- Water Lift:
- 110
- HP:
- 10.4
- Amps:
- 24.2
- Weight (lb):
- 548
- Volts:
- 230
- Dimensions (in):
- 49 x 27 x 69
