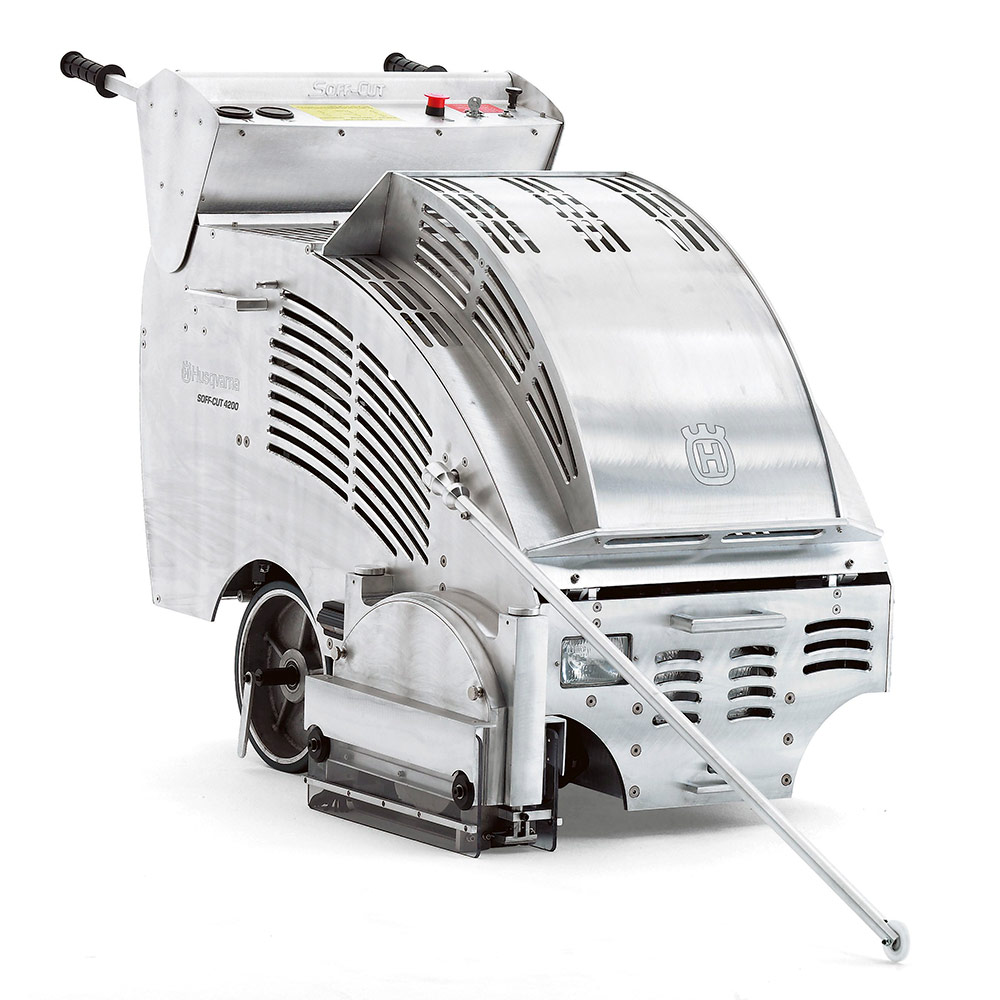

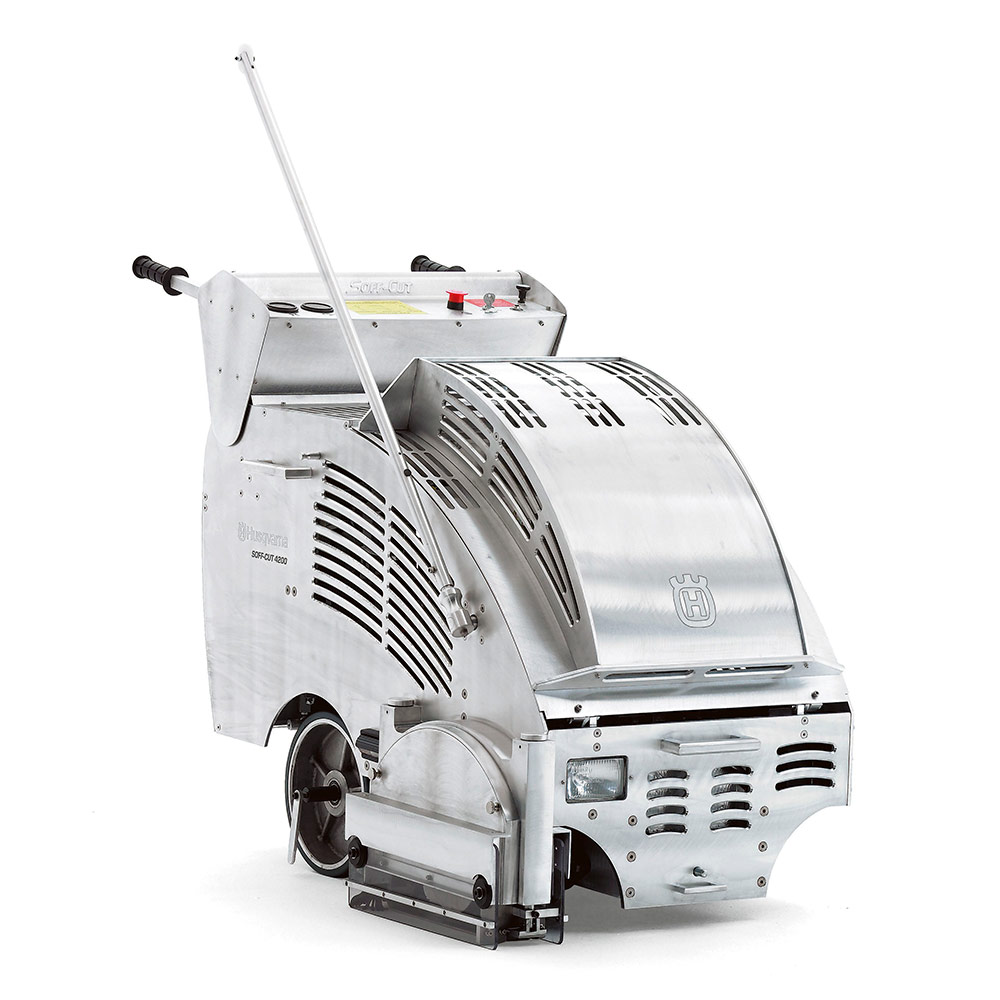

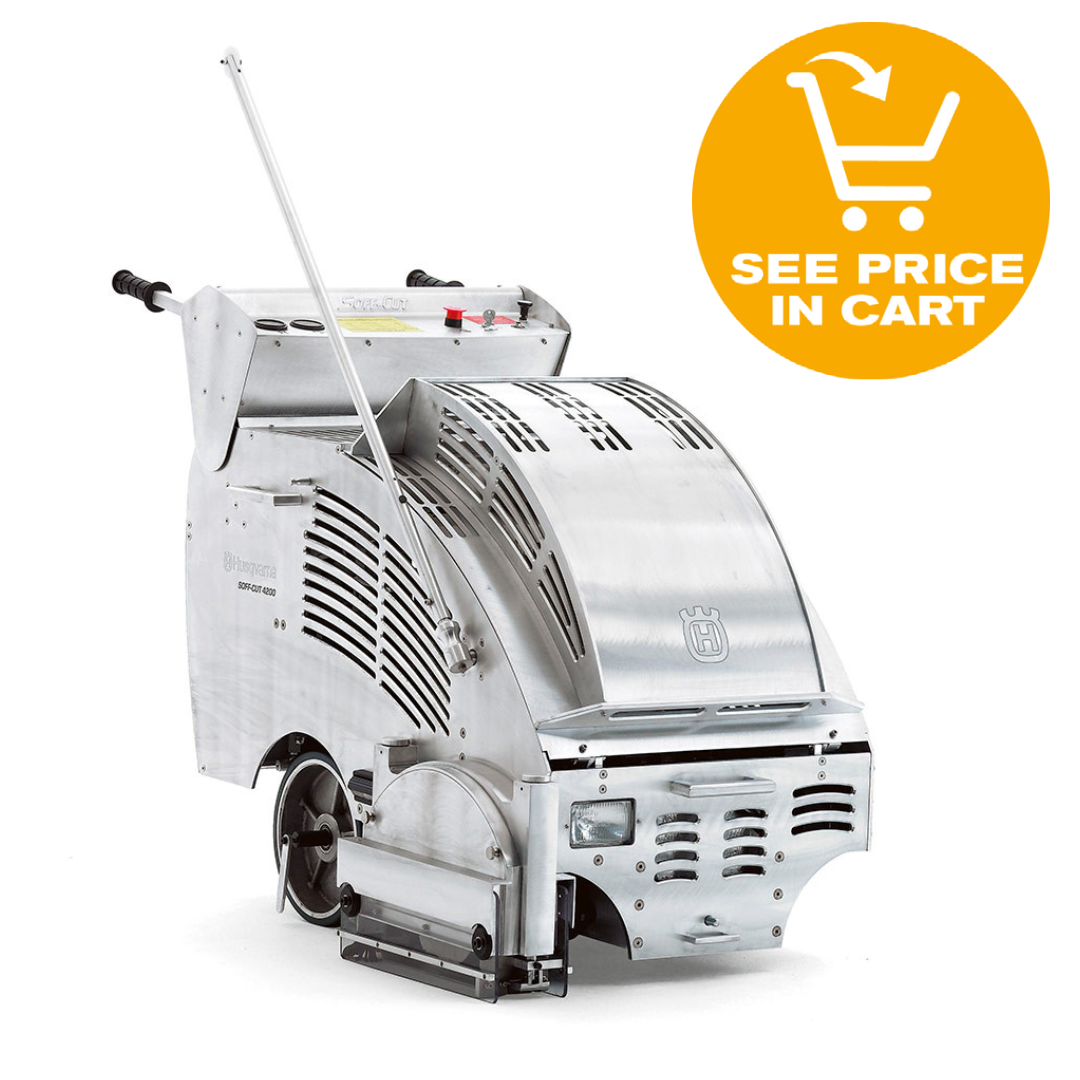

The Husqvarna 4200 self-propelled dry-cutting gasoline saw has a low-noise enclosed design and is ideal for heavy-duty commercial, industrial and paving applications. The 4200 is designed for peak performance. Features include a 23 hp twin-cylinder gasoline engine, three-stage cyclonic air cleaner, oil cooler, full-pressure oil lubrication, hydraulic valve lifters, mechanical fuel pump and oil alert light. Multiple blade widths can be used, allowing different joint widths and crack control simultaneously.
Applications
- A high-production machine used on medium to large commercial, industrial and paving projects.
- Several blade widths can be used, allowing different joint widths and crack control simultaneously.
Benefits
- A self-propelled gasoline saw maximizes green sawing performance with positraction drive and hydrostatic transmission.
- Switch-activated electronic adjustable handles increase operator comfort and reduce fatigue.
- High-strength, lightweight aluminum frame increases stability for better cutting performance.
- Includes Dust Port
Specifications
- Power Source:
- Gasoline
- Arbor Size:
- Triangular
- Bladeshaft Diameter, in (mm):
- 1 1/2 (38)
- Cylinders/ Cycle:
- 2/4
- Fuel Capacity, gal (l):
- 3.16 (12)
- Air Filter:
- Heavy Duty Canister
- Starter:
- Electric
- Engine Cooling:
- Air
- Axle Front/Rear, in (mm):
- 1/1 (25.4/25.4)
- Wheels Front, in (mm):
- 4 x 4 (102 x 102) - 2 each, 4 x 2 (102 x 51) - 1 each
- Wheels Rear, in (mm):
- 11 x 4 (279 x 102) - 2 each
- Blade Guard Type:
- Enclosed
- Numbers of Belts:
- 1 (4 band 3VX) 5000, 1 (3 band 3VX) 4200
- Blade Depth Control:
- Electric
- Oil Capacity, qt (l):
- 2 (1.9)
- Handlebar Adjustment:
- Electric
- Transmission:
- Hydrostatic

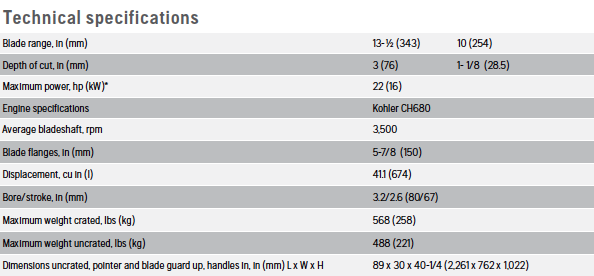

- Technical Data:
- Download Here
GOLD MEDAL EQUIPMENT WARRANTY
New equipment sold by Husqvarna is warranted to be free from manufacturing defects in normal service for a period of one (1) year from date of purchase by the original consumer purchaser. Component manufacturers offer separate warranty periods. Call Technical Services at 800-365-5040 for complete information.
Husqvarna's obligation under this warranty is expressly limited to the replacement or repair at Husqvarna Construction Products, or at a service facility designated by us, of such part or parts as inspection shall disclose to have been defective.
This warranty does not apply to defects caused by damage, unreasonable use, faulty repairs made by others or defects caused by failure to provide reasonable maintenance, while in the possession of the consumer. Further, the warranty is void if the product, or any of its components, is altered or modified by the consumer or if the product is used in an inappropriate manner or with a blade not recommended by the manufacturer.
Husqvarna offers a 1-year warranty on all products including Soff-Cut® Ultra Early Entry™ saws with the following exceptions:
Large flat saws - 2 years (Diesel and gasoline powered flat saws > 30 hp)
K760/K970/K6500/K6500 Ring - 1 year
All other power cutters - 3 months
KV carts (all) - 3 months
Blade clutch on large flat saws - 6 months
Soff-Cut® electric saws - 3 months
PG530/PG680/PG820 grinders - 2 years, or 1,000 hours*
(*) Whichever comes first.
Wear items are not covered under warranty.
Belts
Bearings**
Cart wheels
Filters
Wheels***
Wear pads
Spark plugs
(**) Except IntelliSeal System
(***) Except delamination
DIAMOND TOOL WARRANTY
Laser Weld Blade/Bit Warranty
If the laser weld or diffusion bond between the segment and the core or barrel fails during the normal useful life of the blade or bit, the blade or bit will be replaced FREE OF CHARGE.
Brazed Blade/Bit Warranty
If the brazed bond between the segment and the core or barrel fails within the first .050'' of segment wear, the blade or bit will be repaired or replaced FREE OF CHARGE.
Continuous Rim Blade Warranty
If the bond between the diamond rim and core fails during the normal useful life of the blade, the blade will be replaced FREE OF CHARGE.
