Husqvarna PP 325

Engine:

Gas twin cylinder OHV, aircooled, electric start / n/a / n/a

Power, hp (kW)/ engine manufacturer:

18 (13.5) Briggs & Stratton / n/a / n/a

Pressure, psi (bar):

2,000 (140) / 2,000 (140) / n/a

Flow, gpm (lpm):

5, 8, 10 (20, 30, 40) / 10 (40) / n/a

Weight (with oil), lbs (kg):

298 (135) / 205 (93) / 9 (4.2)

Hose set weight (2 hoses included as standard):

1/2" (13cm) x 25' (7.5m) / n/a / n/a

Hydraulic connections:

Flat faced couplers with dust caps / n/a / n/a

Hydraulic oil capacity, gal (l):

4 (15) / n/a / n/a

Fuel capacity, gal (l):

3 (11.4) / n/a / n/a

Dimensions (L x W x H):

35 x 21 x 29 (89 x 53 x 74) / n/a / n/a

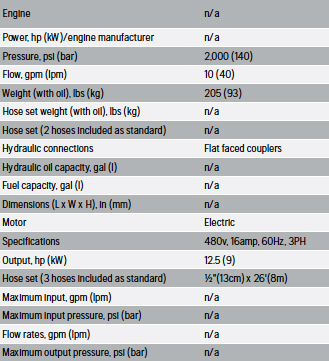

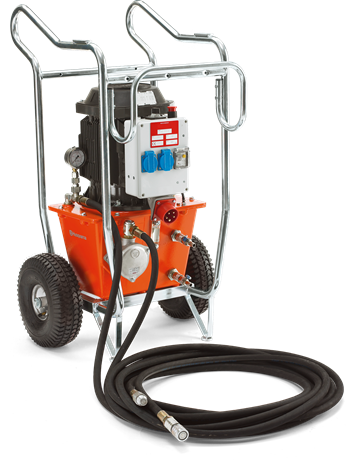

Motor:

n/a / Electric / n/a

Specifications:

n/a / 480x, 16amp, 60Hz, 3PH / n/a

Output, hp (kW):

n/a / 12.5 (9) / n/a

Hose Set (3 hoses included as standard):

n/a / 1/2" (13cm) x 26' (8m) / n/a

Maximum input, gpm (lpm):

n/a / n/a / 30 (120)

Maximum input pressure, psi (bar):

n/a / n/a / 3,000 (210)

Flow rates, gpm (lpm):

n/a / n/a / 5, 8, 10 (20, 30, 40)

Maximum output pressure, psi (bar):

n/a / n/a / 2,000 9140)

Tech Data - PP 65:

Download Here

Tech Data - PP 325 E:

Download Here

Tech Data - FC 40:

Download Here

GOLD MEDAL EQUIPMENT WARRANTY New equipment sold by Husqvarna is warranted to be free from manufacturing defects in normal service for a period of one (1) year from date of purchase by the original consumer purchaser. Component manufacturers offer separate warranty periods. Call Technical Services at 800-365-5040 for complete information. Husqvarna's obligation under this warranty is expressly limited to the replacement or repair at Husqvarna Construction Products, or at a service facility designated by us, of such part or parts as inspection shall disclose to have been defective. This warranty does not apply to defects caused by damage, unreasonable use, faulty repairs made by others or defects caused by failure to provide reasonable maintenance, while in the possession of the consumer. Further, the warranty is void if the product, or any of its components, is altered or modified by the consumer or if the product is used in an inappropriate manner or with a blade not recommended by the manufacturer. Husqvarna offers a 1-year warranty on all products including Soff-Cut® Ultra Early Entry™ saws with the following exceptions: Large flat saws - 2 years (Diesel and gasoline powered flat saws > 30 hp) K760/K970/K6500/K6500 Ring - 1 year All other power cutters - 3 months KV carts (all) - 3 months Blade clutch on large flat saws - 6 months Soff-Cut® electric saws - 3 months PG530/PG680/PG820 grinders - 2 years, or 1,000 hours* (*) Whichever comes first. Wear items are not covered under warranty. Belts Bearings** Cart wheels Filters Wheels*** Wear pads Spark plugs (**) Except IntelliSeal System (***) Except delamination DIAMOND TOOL WARRANTY Laser Weld Blade/Bit Warranty If the laser weld or diffusion bond between the segment and the core or barrel fails during the normal useful life of the blade or bit, the blade or bit will be replaced FREE OF CHARGE. Brazed Blade/Bit Warranty If the brazed bond between the segment and the core or barrel fails within the first .050'' of segment wear, the blade or bit will be repaired or replaced FREE OF CHARGE. Continuous Rim Blade Warranty If the bond between the diamond rim and core fails during the normal useful life of the blade, the blade will be replaced FREE OF CHARGE.
