Product Description

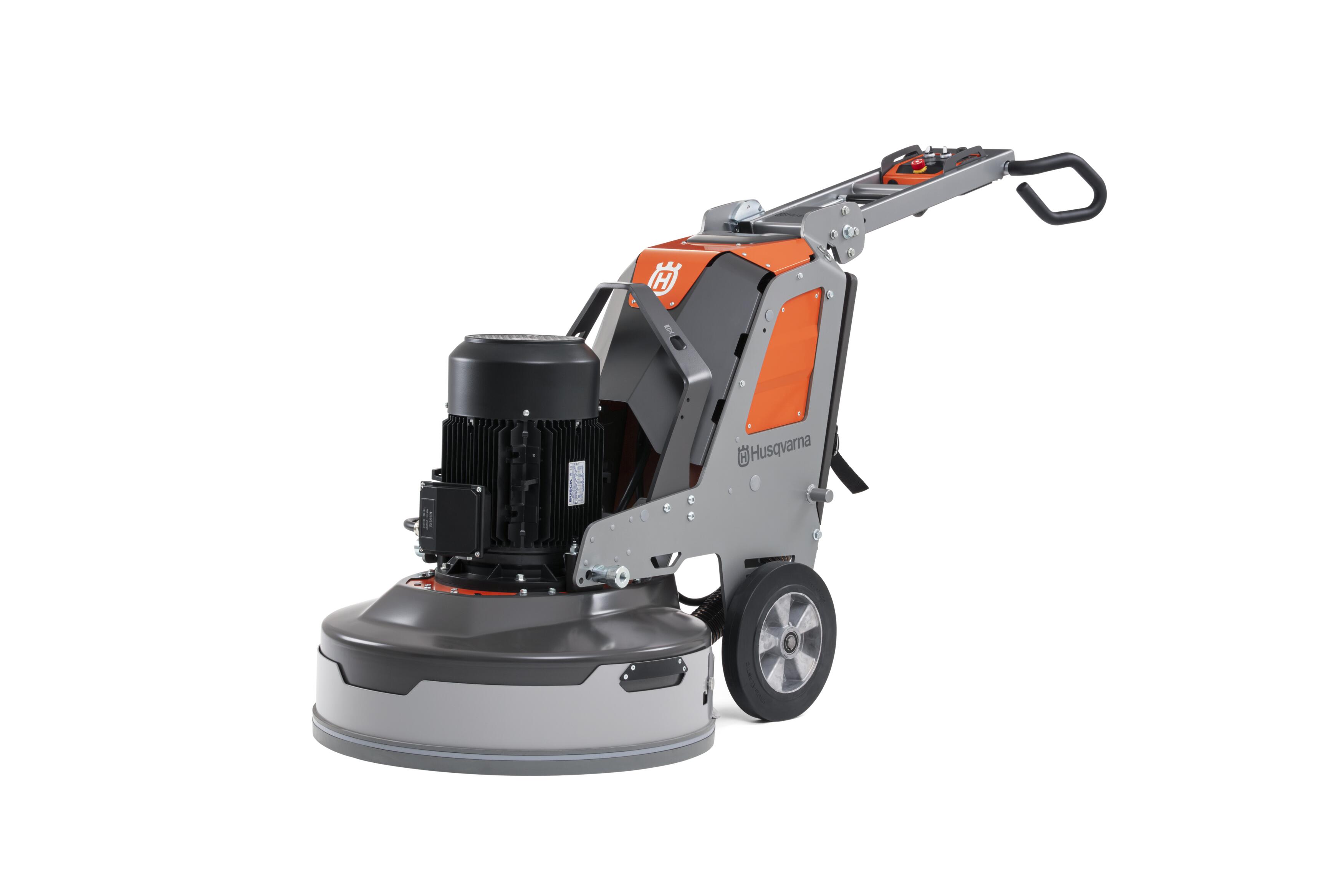

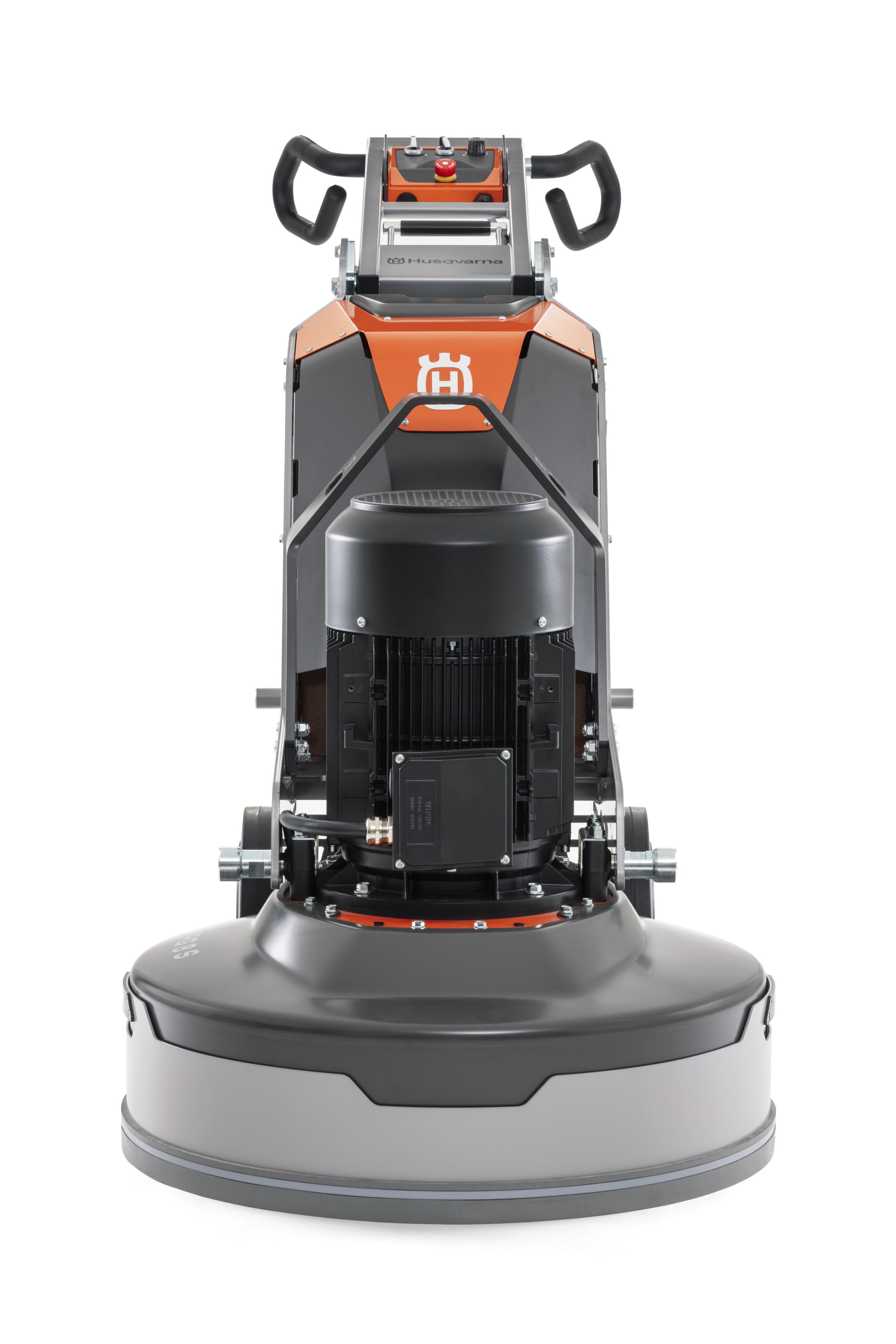

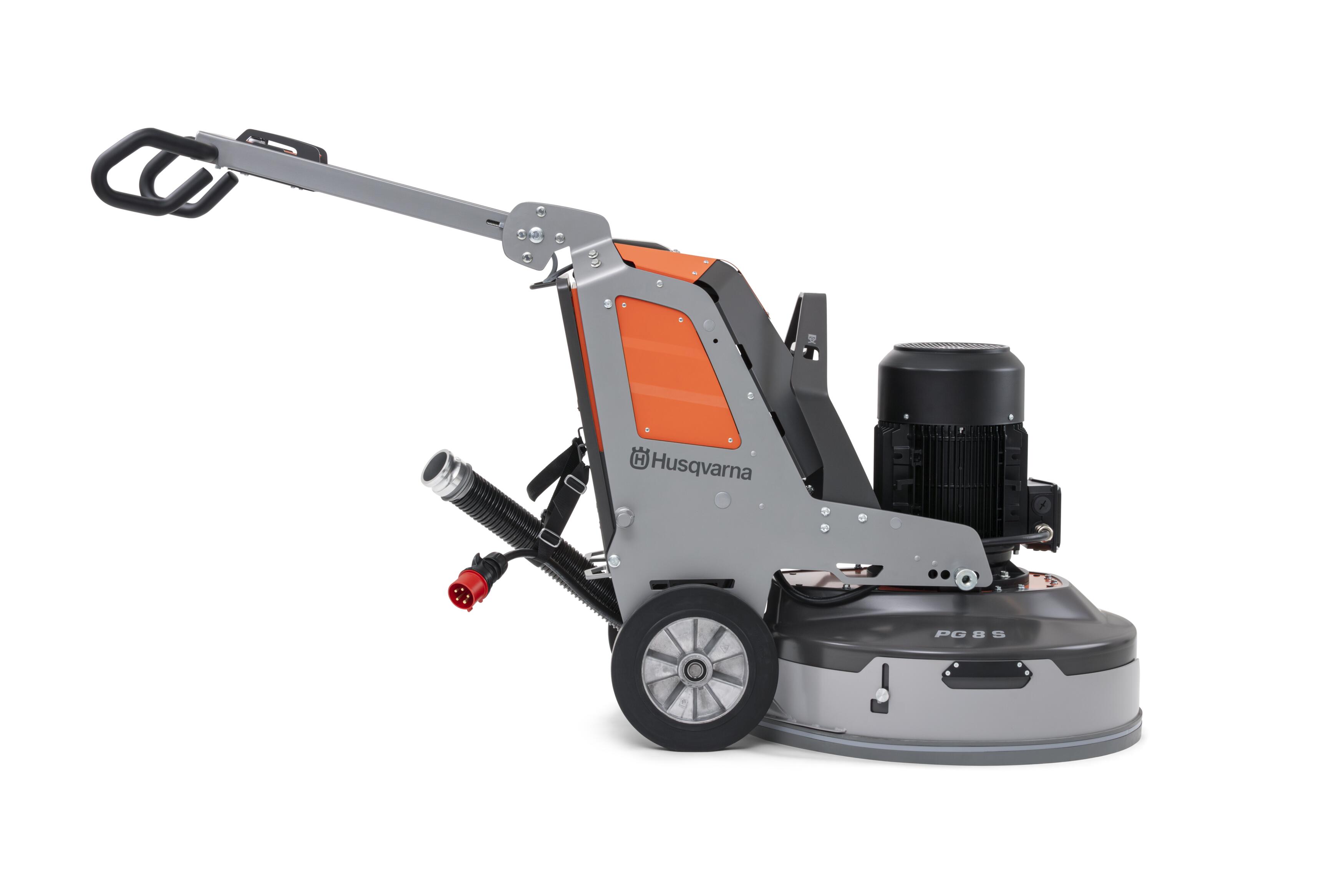

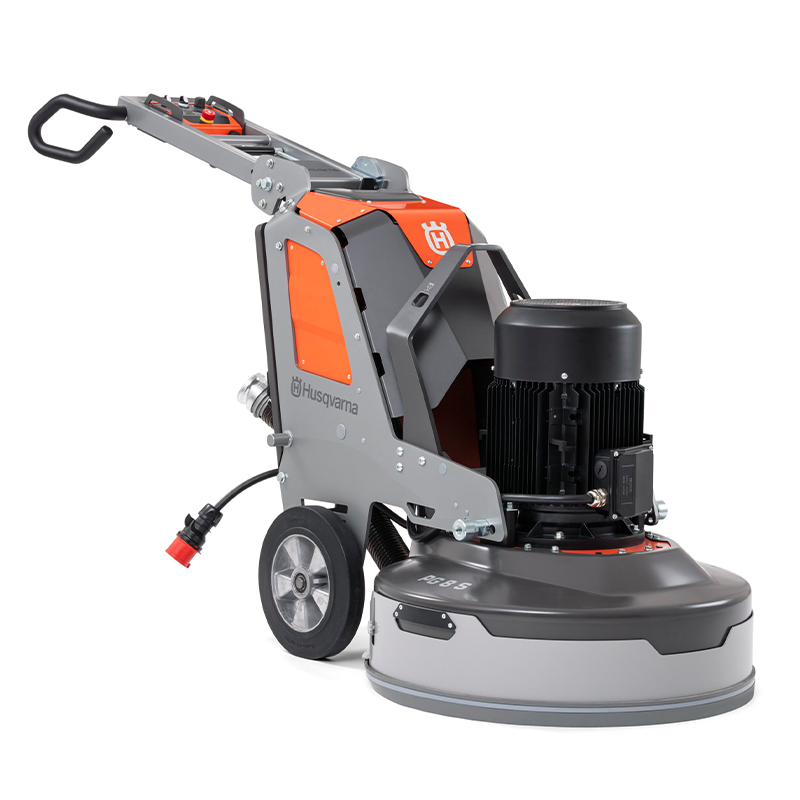

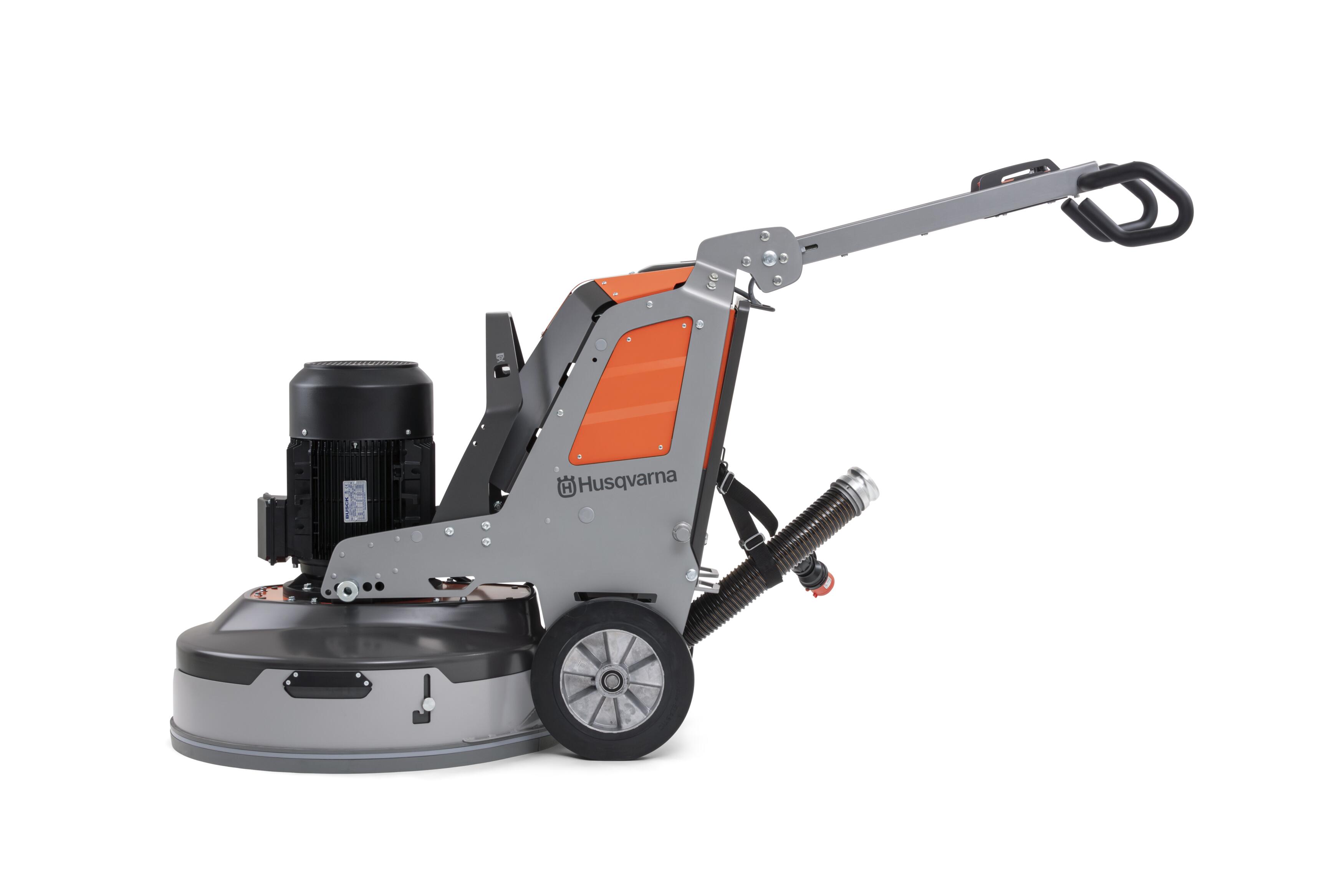

The PG 8 S is a powerful and robust planetary floor grinder with a focus on simplicity. This is a good choice for grinding and polishing jobs, and for users who prefer a non-motorised drive. Easy to use, the PG 8 S has a large capacity thanks to the 32 in / 800 mm grinding width and powerful motor. Adjustable weights for extra grinding pressure are optional.
The hermetically sealed design of the grinding head and electrical cabinet, along with the robustness of the components, contributes to high reliability and low maintenance.
Features
- Sealed to last: Sealed grinding head with 1000 hrs service interval. This prevents dust or water to intrude and damage components.
- Protected electronics: Dust sealed electrical cabinet with external cooling technology. This prevents dust to intrude and damage components.
- Ergonomic handle: Adjustable handle for better ergonomics.

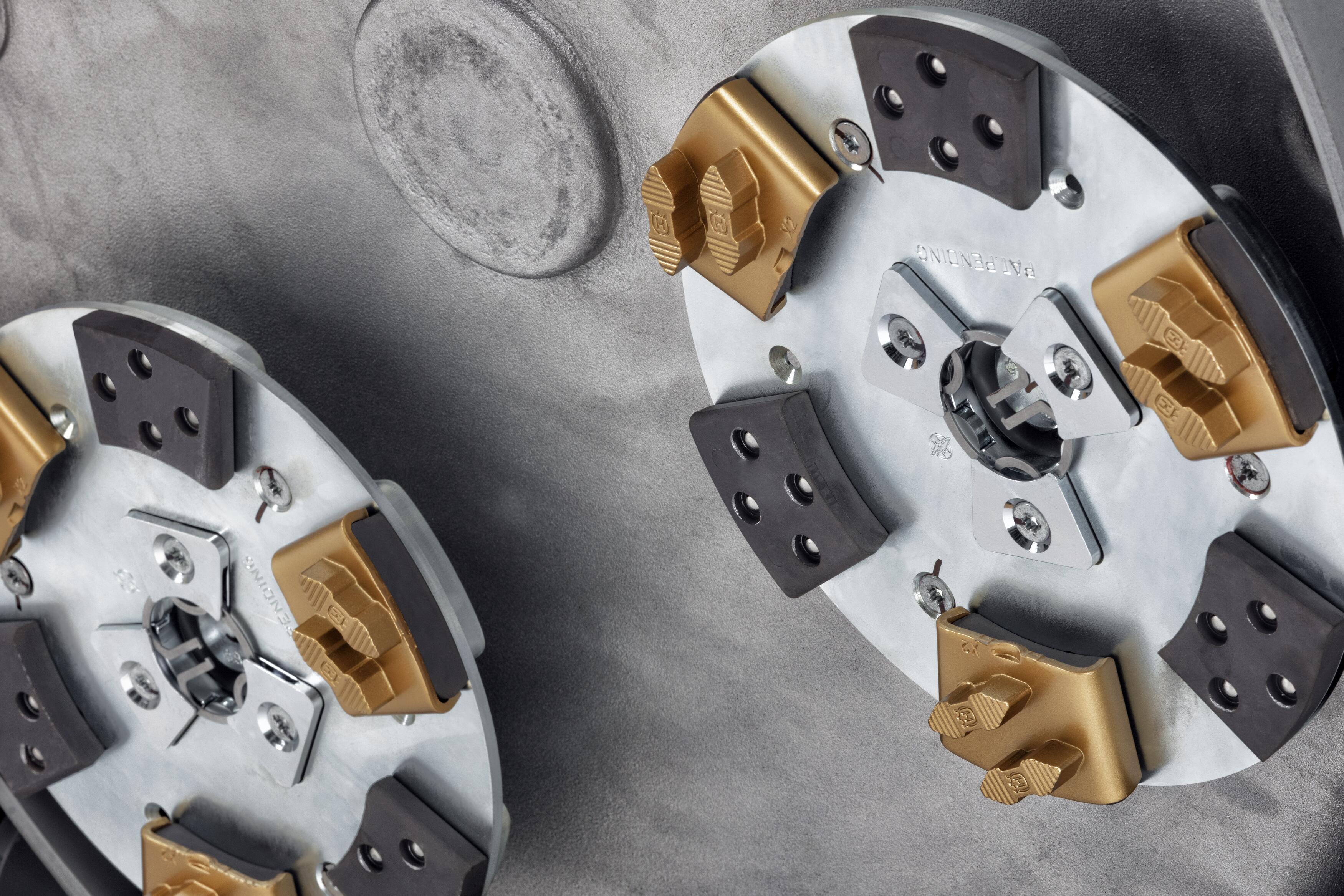

- Time Saving Tool Change: EZchange is an instant hassle free system for changing diamond tooling.
- Adjustable grinding pressure: The integrated weights allow you to adjust the grinding pressure into different preset positions. They also make it easier to tilt the machine.
- Fleet ready: Husqvarna Fleet Services is a digital, cloud based asset management service that gathers and presents key machine data. Machine sensors are either embedded or retrofitted to the exterior of the machine.
- Quick release of tool holders: Tool holder plates are easily removed without the need of special tooling.
- EZchange airflow tool holders: The EZchange tool holder with airflow technology creates an increased and controlled airflow around the tools. This cools the tools and directs dust towards the extractor.
Specifications
PG 8 S |
970604702 |
970604705 |
---|---|---|
Engine | ||
Engine Power | 14.8 hp | 14.8 hp |
Motor | ||
Power source | Corded | Corded |
Rated input power | 14.8 hp | 14.8 hp |
Phases | 3 ph | 3 ph |
Voltage | 200-240 V | 440-480 V |
Rated current | 50 A | 30 A |
Frequency | 50-60 Hz | 50-60 Hz |
Pins | 3P+E | 3P+E |
Equipment | ||
Grinding width | 31.5 in | 31.5 in |

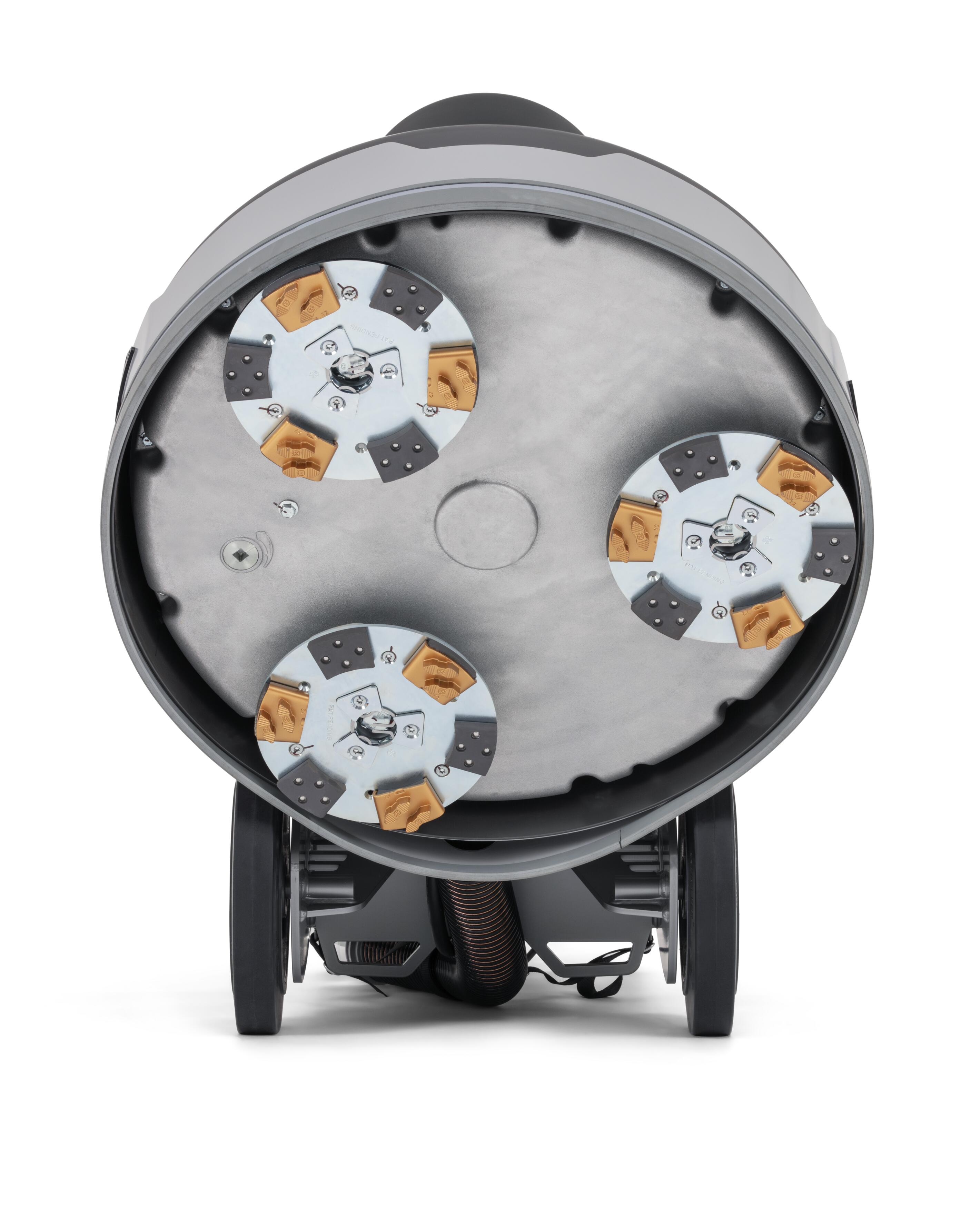

Number of grinding discs | 3 | 3 |
Direction of rotation | Both directions | Both directions |
Grinding disc diameter | 9.1 in | 9.1 in |
Grinding disc speed min | 420 rpm | 420 rpm |
Grinding disc speed max | 1,176 rpm | 1,176 rpm |
Transmission | ||
Type of operation | Push | Push |
Dimensions | ||
Product size length | 54.6 in | 54.6 in |
Product size width | 33 in | 33 in |
Product size height | 44.7 in | 44.7 in |
Weight | 1,120 lbs | 1,120 lbs |
