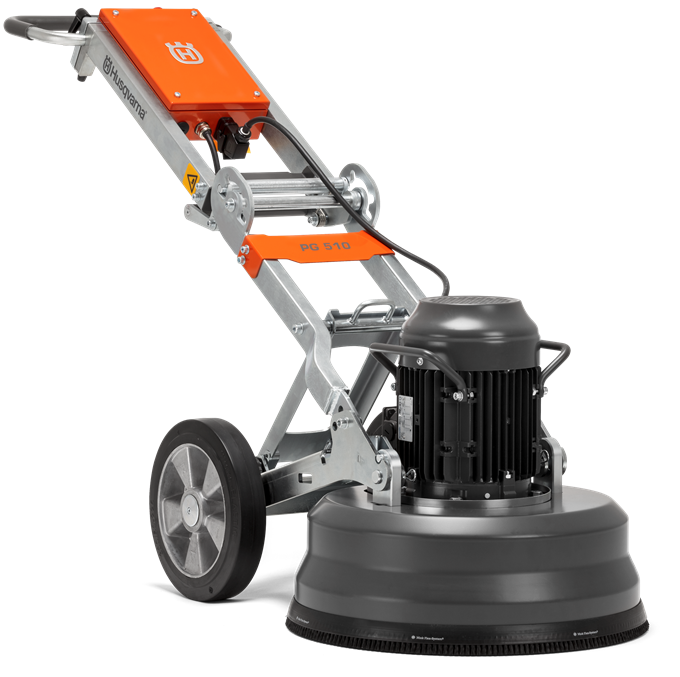

The PG 510 220V-240V Single Phase Grinder is a planetary floor grinder with three grinding discs and a total grinding width of 515 mm/20". It is suitable for removing coatings, grinding and polishing concrete, etc. The grinding head on the PG 510 is effectively sealed to keep dust and moisture out. This greatly extends the lifetime of the bearings and belts. The PG 510 is ideal as a rental machine and suitable for both professional and semi-professional work. Quick-release couplings allow the grinding head to be separated from the chassis which can then be easily folded for transport. The grinder also has a digital hour meter.
Features:

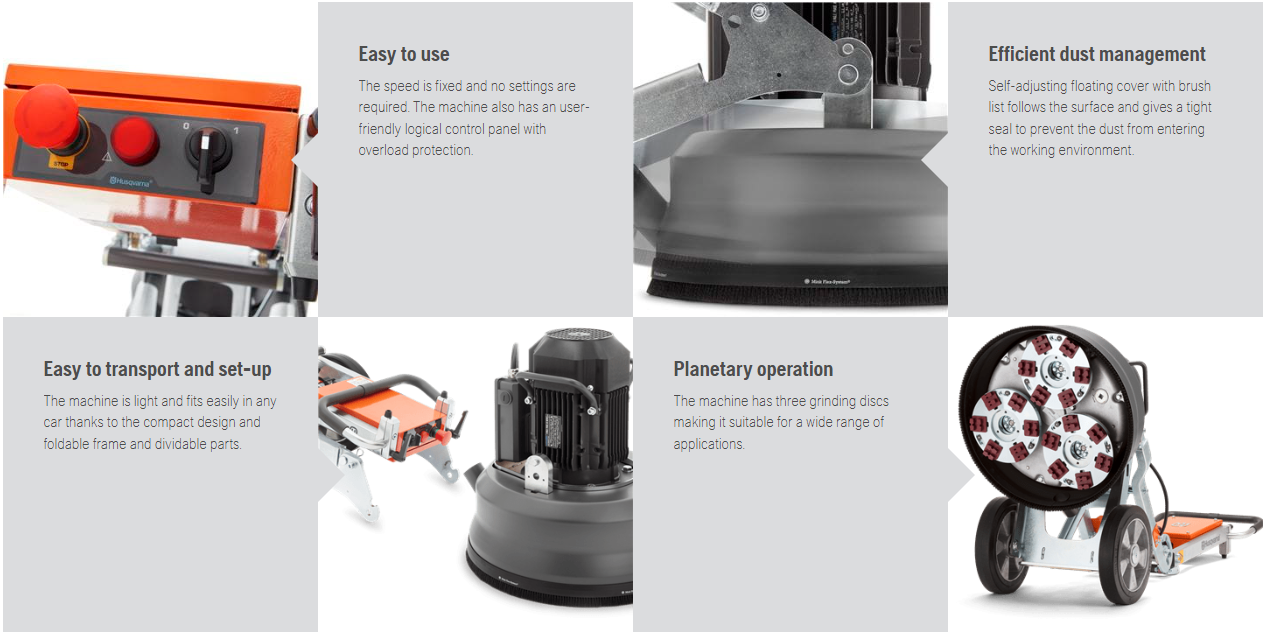

- Highly versatile: Planetary drive, single phase and the ability to make HiPERFLOOR® makes this a very versatile machine.
- Easy to use: The speed is fixed and no settings are required. The machine also has a user-friendly logical control panel with overload protection.
- Efficient dust management: Self-adjusting floating cover with brush list follows the surface and gives a tight seal to prevent the dust from entering the working environment.
- Easy to transport and set-up: The machine is light and fits easily in any car thanks to the compact design and foldable frame and dividable parts.
- Rated input power: 2 hp / 3 hp*
- Rated current: 7 A / **
- Voltage: 220V-240V
- Phases: 1 ph
- Frequency: 60 Hz
Dimensions
- Product size width: 20 in
- Product size height: 45 in*
- Weight: 240.3 lbs*
Other
- Grinding width: 20 in
- Grinding disc speed max: 669 rpm
- Direction of rotation: One Direction
- Number of grinding discs: 3
*Light Kit (597925201) and weight kit not included.
GOLD MEDAL EQUIPMENT WARRANTY
New equipment sold by Husqvarna is warranted to be free from manufacturing defects in normal service for a period of one (1) year from date of purchase by the original consumer purchaser. Component manufacturers offer separate warranty periods. Call Technical Services at 800-365-5040 for complete information.
Husqvarna's obligation under this warranty is expressly limited to the replacement or repair at Husqvarna Construction Products, or at a service facility designated by us, of such part or parts as inspection shall disclose to have been defective.
This warranty does not apply to defects caused by damage, unreasonable use, faulty repairs made by others or defects caused by failure to provide reasonable maintenance, while in the possession of the consumer. Further, the warranty is void if the product, or any of its components, is altered or modified by the consumer or if the product is used in an inappropriate manner or with a blade not recommended by the manufacturer.
Husqvarna offers a 1-year warranty on all products including Soff-Cut® Ultra Early Entry™ saws with the following exceptions:
Large flat saws - 2 years (Diesel and gasoline powered flat saws > 30 hp)
K760/K970/K6500/K6500 Ring - 1 year
All other power cutters - 3 months
KV carts (all) - 3 months
Blade clutch on large flat saws - 6 months
Soff-Cut® electric saws - 3 months
PG530/PG680/PG820 grinders - 2 years, or 1,000 hours*
(*) Whichever comes first.
Wear items are not covered under warranty.
Belts
Bearings**
Cart wheels
Filters
Wheels***
Wear pads
Spark plugs
(**) Except IntelliSeal System
(***) Except delamination
DIAMOND TOOL WARRANTY
Laser Weld Blade/Bit Warranty
If the laser weld or diffusion bond between the segment and the core or barrel fails during the normal useful life of the blade or bit, the blade or bit will be replaced FREE OF CHARGE.
Brazed Blade/Bit Warranty
If the brazed bond between the segment and the core or barrel fails within the first .050'' of segment wear, the blade or bit will be repaired or replaced FREE OF CHARGE.
Continuous Rim Blade Warranty
If the bond between the diamond rim and core fails during the normal useful life of the blade, the blade will be replaced FREE OF CHARGE.
