Product Description

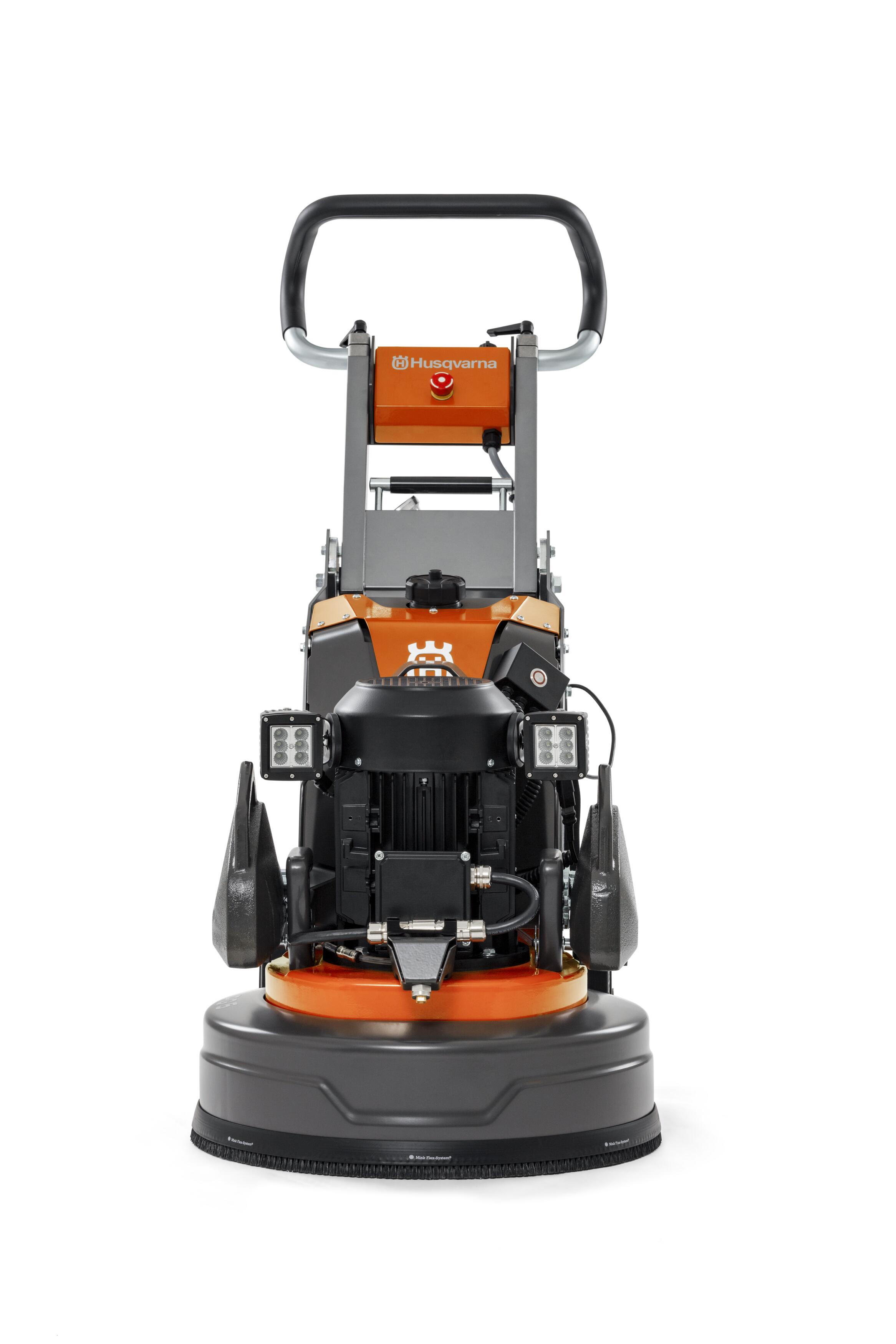

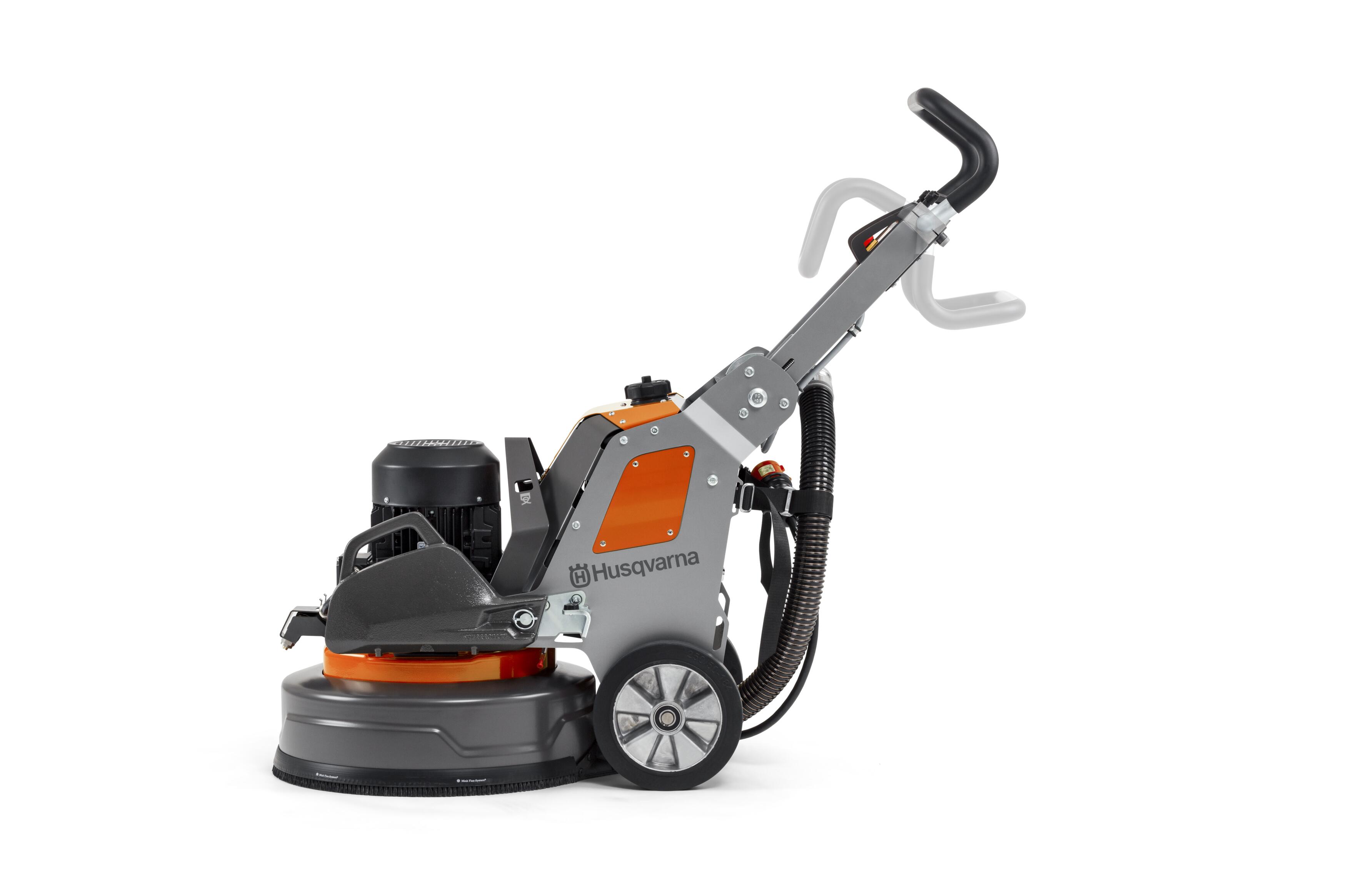

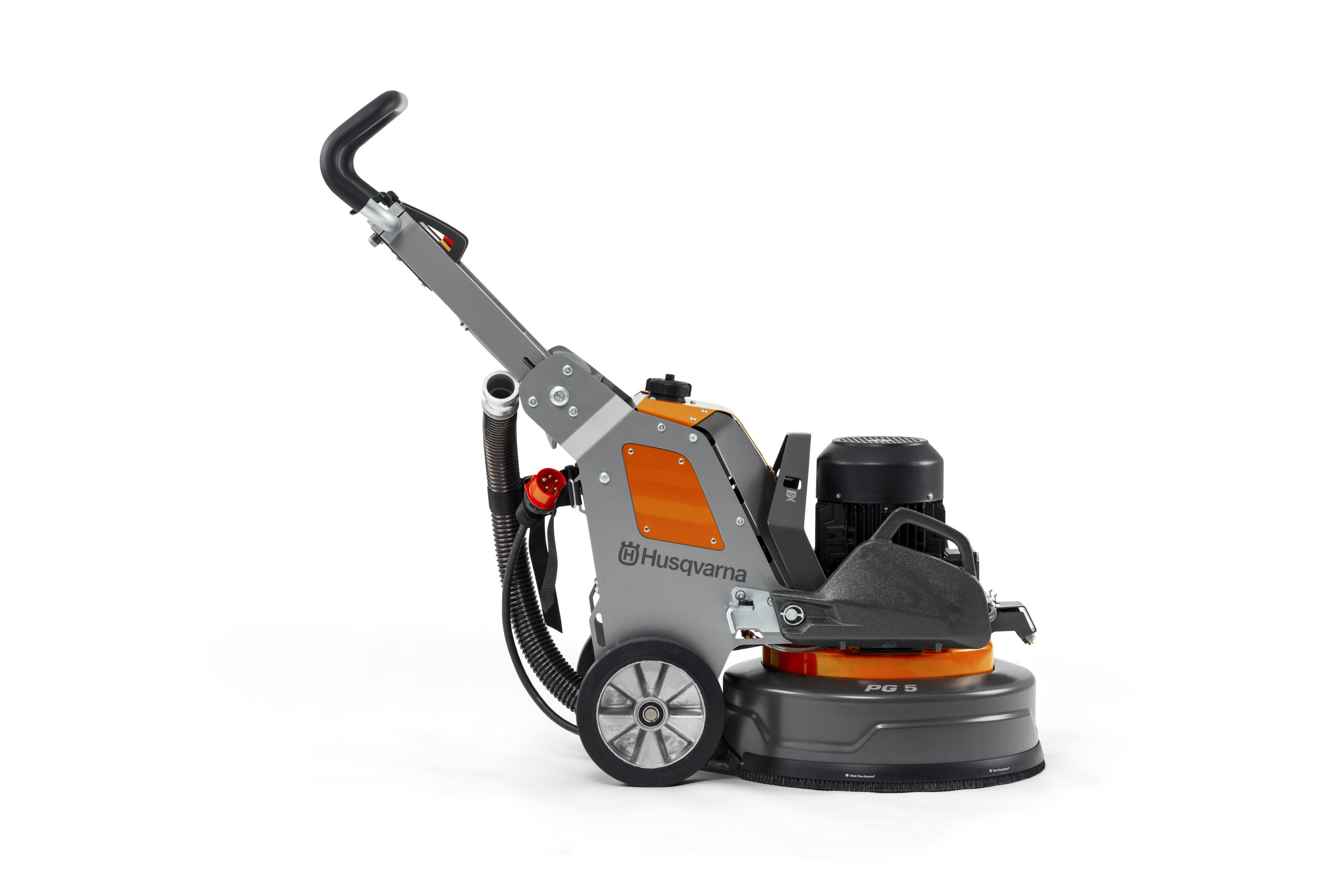

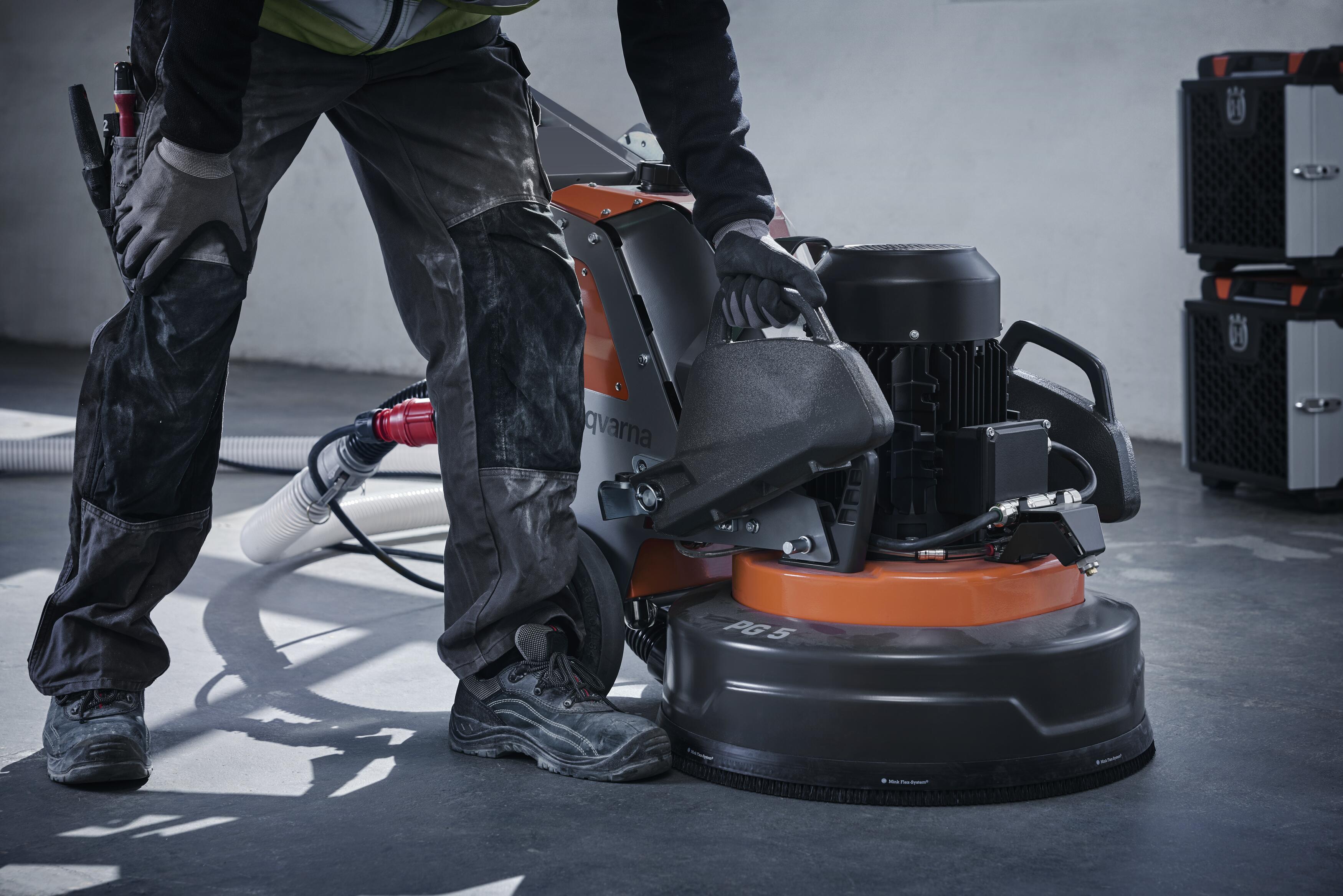

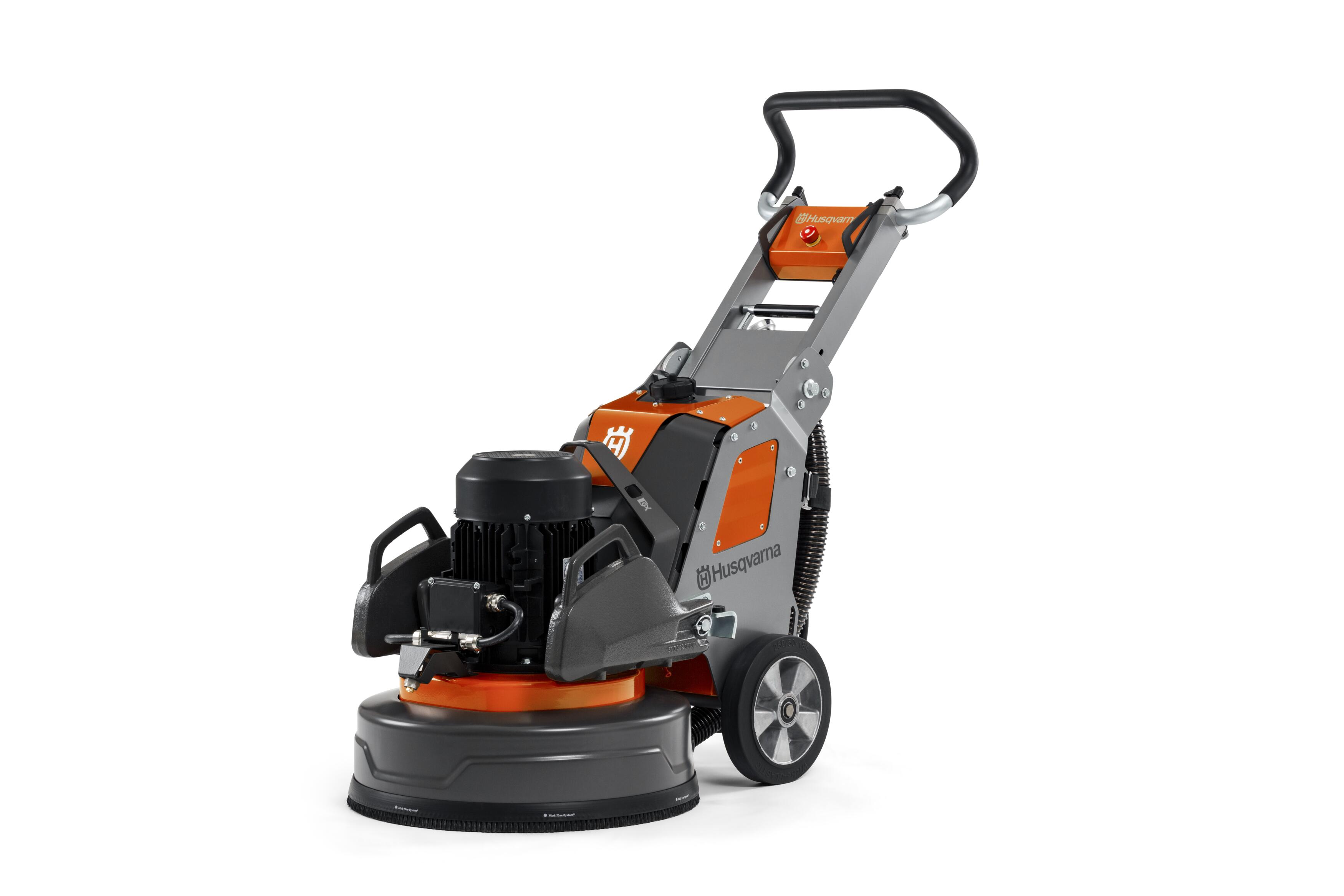

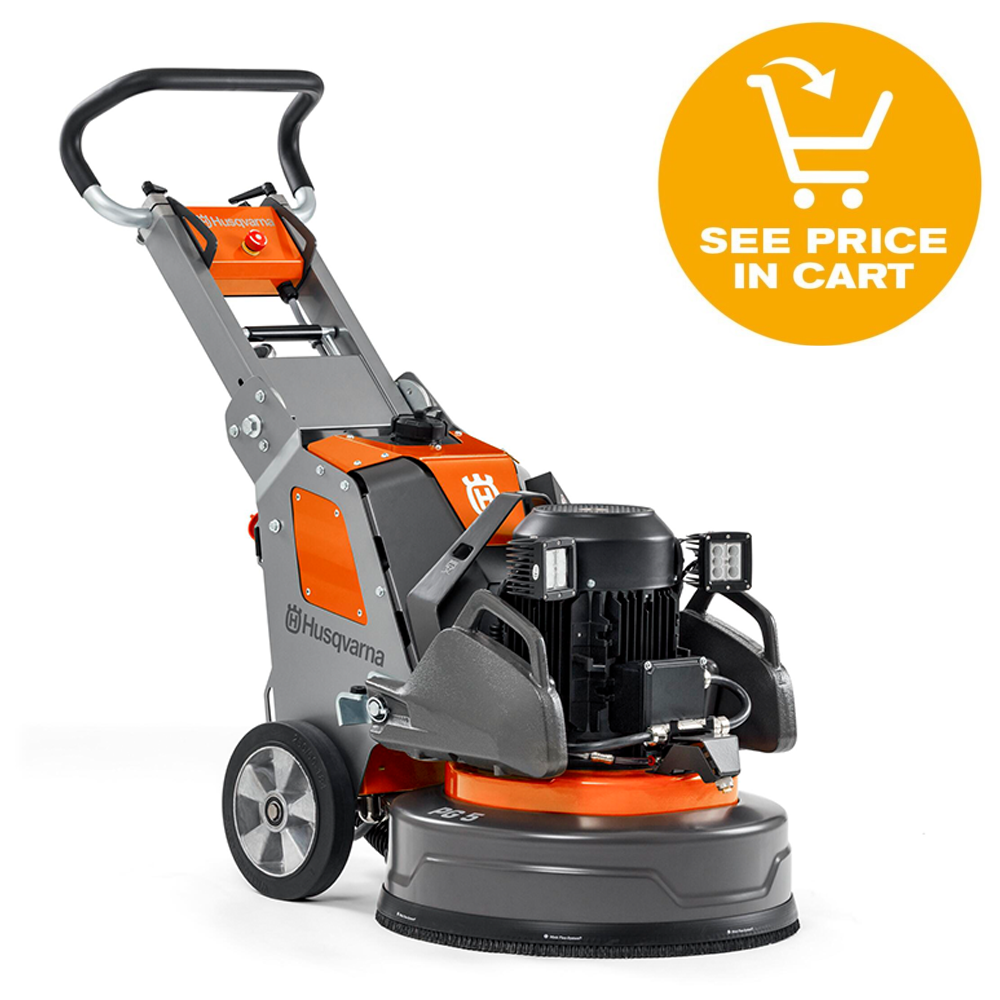

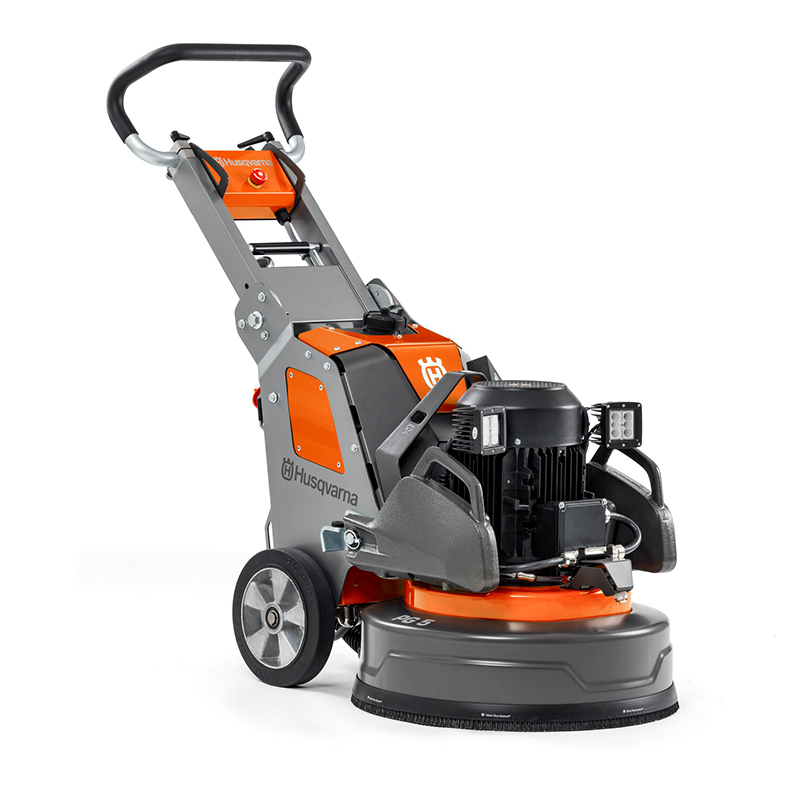

The PG 5 is a compact and powerful planetary floor grinder with three grinding discs and a 4 kW motor. It is suitable for everything from removing coatings to grinding and polishing concrete or natural stone. The machine also features a mist cooler system that cools the diamond tools during operation, significantly increasing the removal rate and reducing the risk of glazing the tools (compared with not using the mist cooler system). For convenience, the chassis can be easily separated from the grinding head and the weights dismounted prior to transport.
The hermetically sealed design of the grinding head and electrical cabinet, along with the robustness of the components, contributes to high reliability and low maintenance.
Features

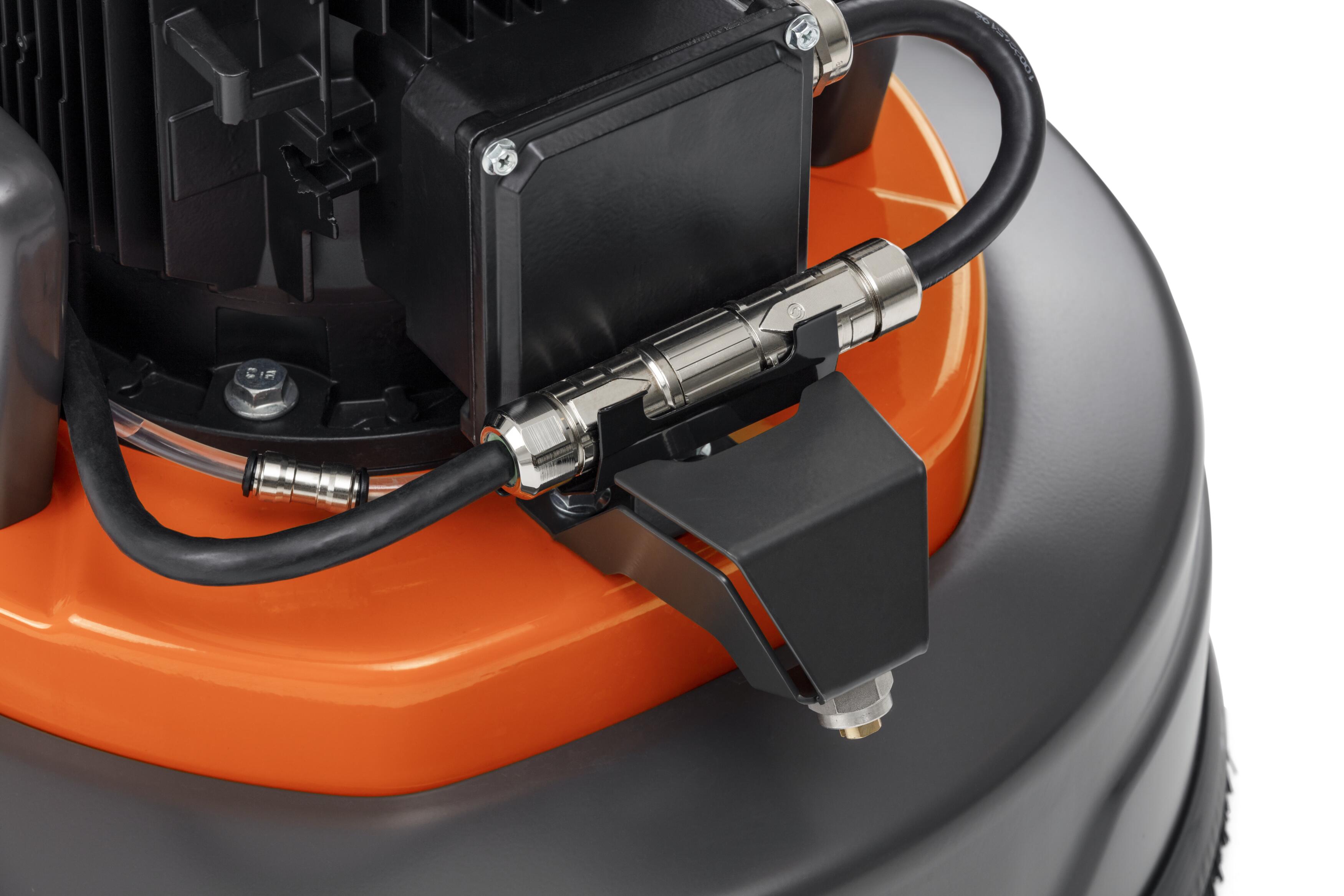

- Higher removal rate with mist cooler system: The mist cooler system sprays a fine mist on the floor, which cools the diamond tools. This makes it possible to achieve a better cut, reduces the risk of glazing the tools, and significantly increases productivity.
- Sealed to last: Sealed grinding head with 1000 hrs service interval. This prevents dust or water to intrude and damage components.
- Protected electronics: Dust sealed electrical cabinet with external cooling technology. This prevents dust to intrude and damage components.
- Improved dust pick up: The robust steel floating shroud follows the floor surface for optimal dust pick up - no adjustment needed.
- Ergonomic handle: Adjustable handle for better ergonomics.
- Time Saving Tool Change: EZchange is an instant hassle free system for changing diamond tooling.
- Adjustable grinding pressure: The integrated weights allow you to adjust the grinding pressure into different preset positions. They also make it easier to tilt the machine.
- Magnetic LED lights: The optional light kit substantially improves visibility of the floor while you grind. Thanks to magnetic attachments, they are easy to position and adjust.
- Fleet ready: Husqvarna Fleet Services is a digital, cloud based asset management service that gathers and presents key machine data. Machine sensors are either embedded or retrofitted to the exterior of the machine.
- Quick release of tool holders: Tool holder plates are easily removed without the need of special tooling.

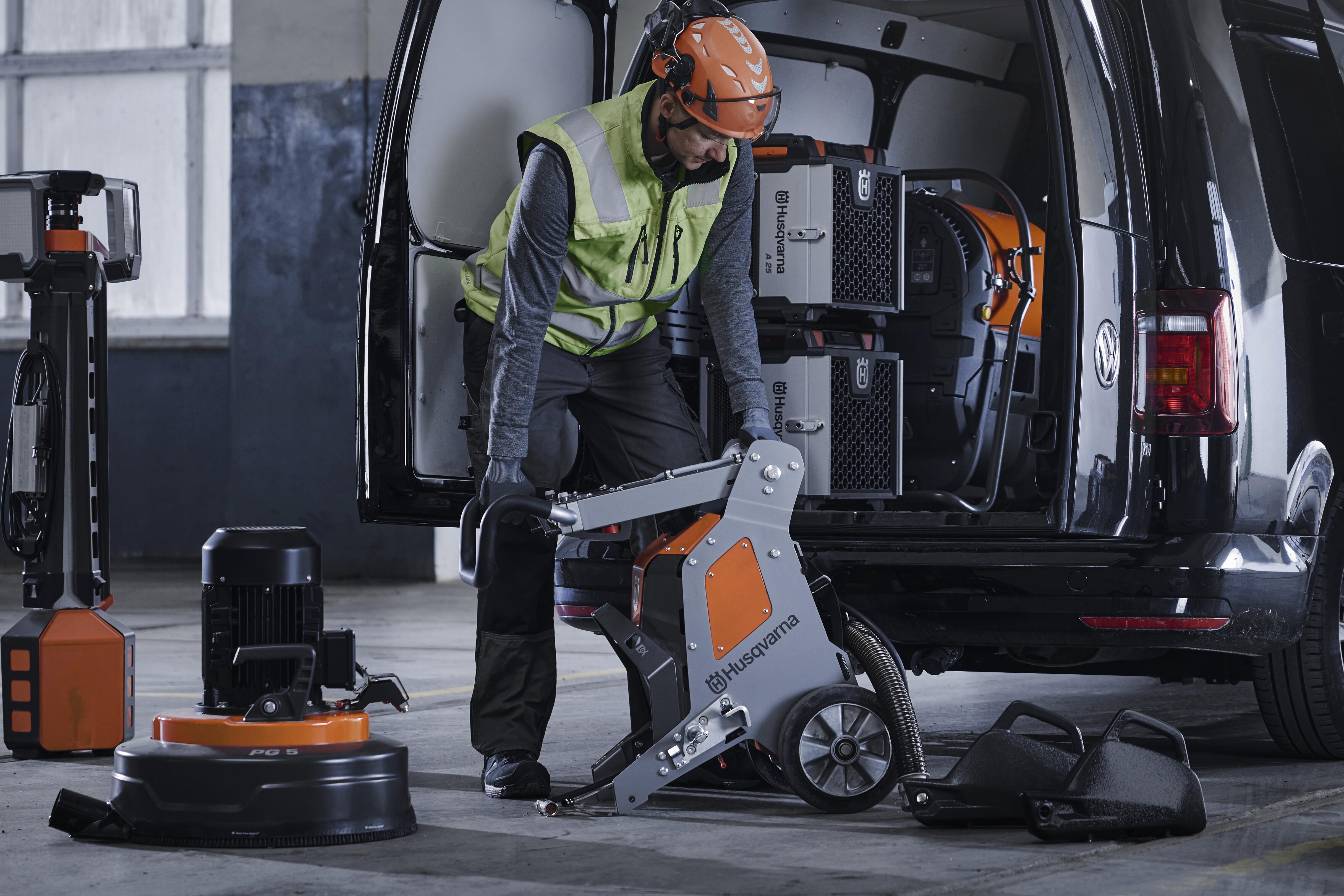

- Fits into most standard cars: Split chassis design with quick connectors makes transporation easy.
- EZchange airflow tool holders: The EZchange tool holder with airflow technology creates an increased and controlled airflow around the tools. This cools the tools and directs dust towards the extractor.
Specifications
| Engine | |
| Engine Power | 5.4 hp |
| Motor | |
| Power source | Corded |
| Rated input power | 5.4 hp |
| Phases | 1 ph |
| Voltage | 200-240 V |
| Rated current | 30 A |
| Frequency | 50-60 Hz |
| Pins | 2P+E |
| Equipment | |
| Grinding width | 20.3 in |

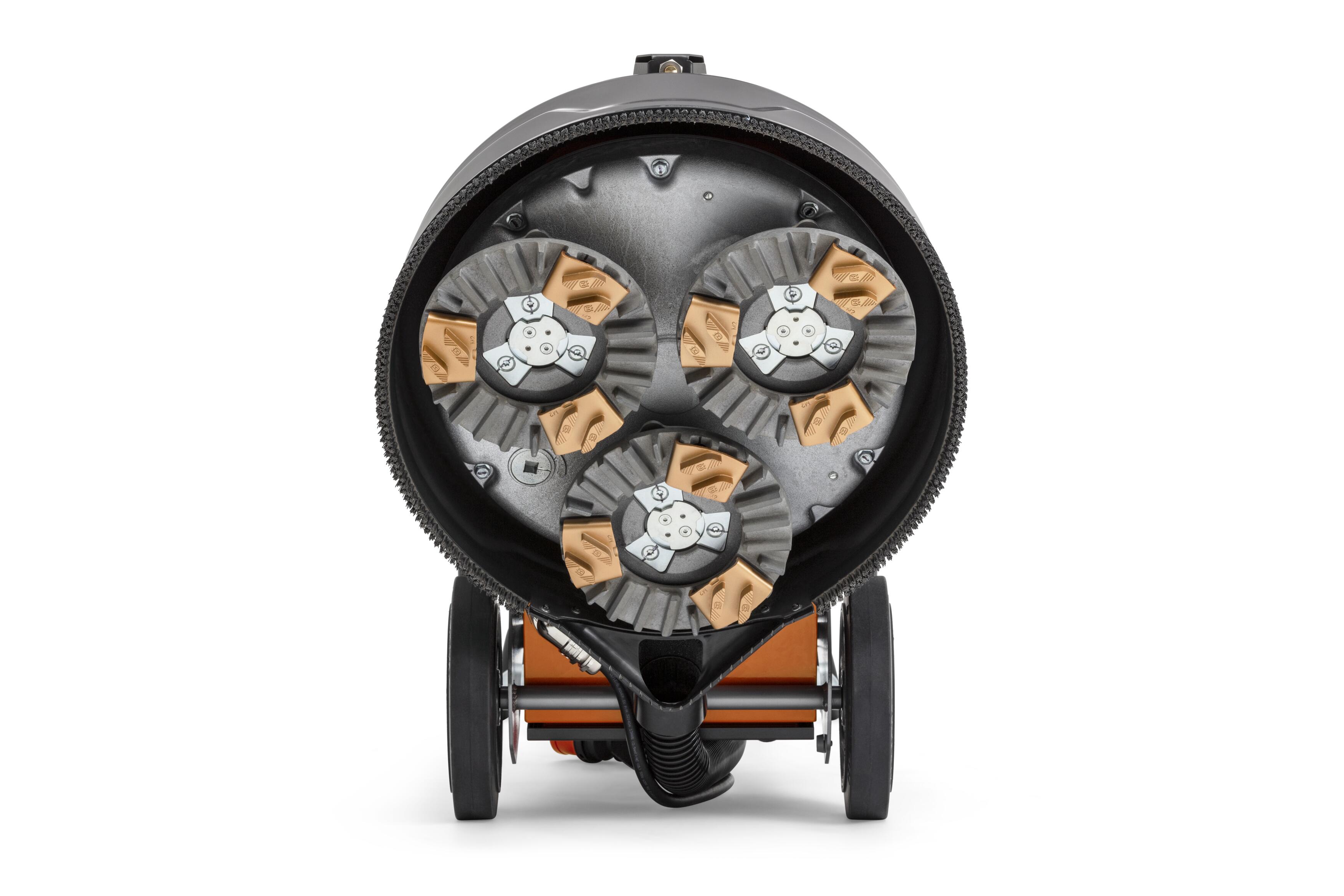

| Number of grinding discs | 3 |
| Direction of rotation | Both directions |
| Grinding disc diameter | 9.1 in |
| Grinding disc speed min | 353 rpm |
| Grinding disc speed max | 1,176 rpm |
| Transmission | |
| Type of operation | Push |
| Dimensions | |
| Product size length | 35.7 in |
| Product size width | 22.1 in |
| Product size height | 28.4 in |
| Weight | 403 lbs |
- Manual:
- Download Here
GOLD MEDAL EQUIPMENT WARRANTY
New equipment sold by Husqvarna is warranted to be free from manufacturing defects in normal service for a period of one (1) year from date of purchase by the original consumer purchaser. Component manufacturers offer separate warranty periods. Call Technical Services at 800-365-5040 for complete information.
Husqvarna's obligation under this warranty is expressly limited to the replacement or repair at Husqvarna Construction Products, or at a service facility designated by us, of such part or parts as inspection shall disclose to have been defective.
This warranty does not apply to defects caused by damage, unreasonable use, faulty repairs made by others or defects caused by failure to provide reasonable maintenance, while in the possession of the consumer. Further, the warranty is void if the product, or any of its components, is altered or modified by the consumer or if the product is used in an inappropriate manner or with a blade not recommended by the manufacturer.
Husqvarna offers a 1-year warranty on all products including Soff-Cut® Ultra Early Entry™ saws with the following exceptions:
Large flat saws - 2 years (Diesel and gasoline powered flat saws > 30 hp)
K760/K970/K6500/K6500 Ring - 1 year
All other power cutters - 3 months
KV carts (all) - 3 months
Blade clutch on large flat saws - 6 months
Soff-Cut® electric saws - 3 months
PG530/PG680/PG820 grinders - 2 years, or 1,000 hours*
(*) Whichever comes first.
Wear items are not covered under warranty.
Belts
Bearings**
Cart wheels
Filters
Wheels***
Wear pads
Spark plugs
(**) Except IntelliSeal System
(***) Except delamination
DIAMOND TOOL WARRANTY
Laser Weld Blade/Bit Warranty
If the laser weld or diffusion bond between the segment and the core or barrel fails during the normal useful life of the blade or bit, the blade or bit will be replaced FREE OF CHARGE.
Brazed Blade/Bit Warranty
If the brazed bond between the segment and the core or barrel fails within the first .050'' of segment wear, the blade or bit will be repaired or replaced FREE OF CHARGE.
Continuous Rim Blade Warranty
If the bond between the diamond rim and core fails during the normal useful life of the blade, the blade will be replaced FREE OF CHARGE.
