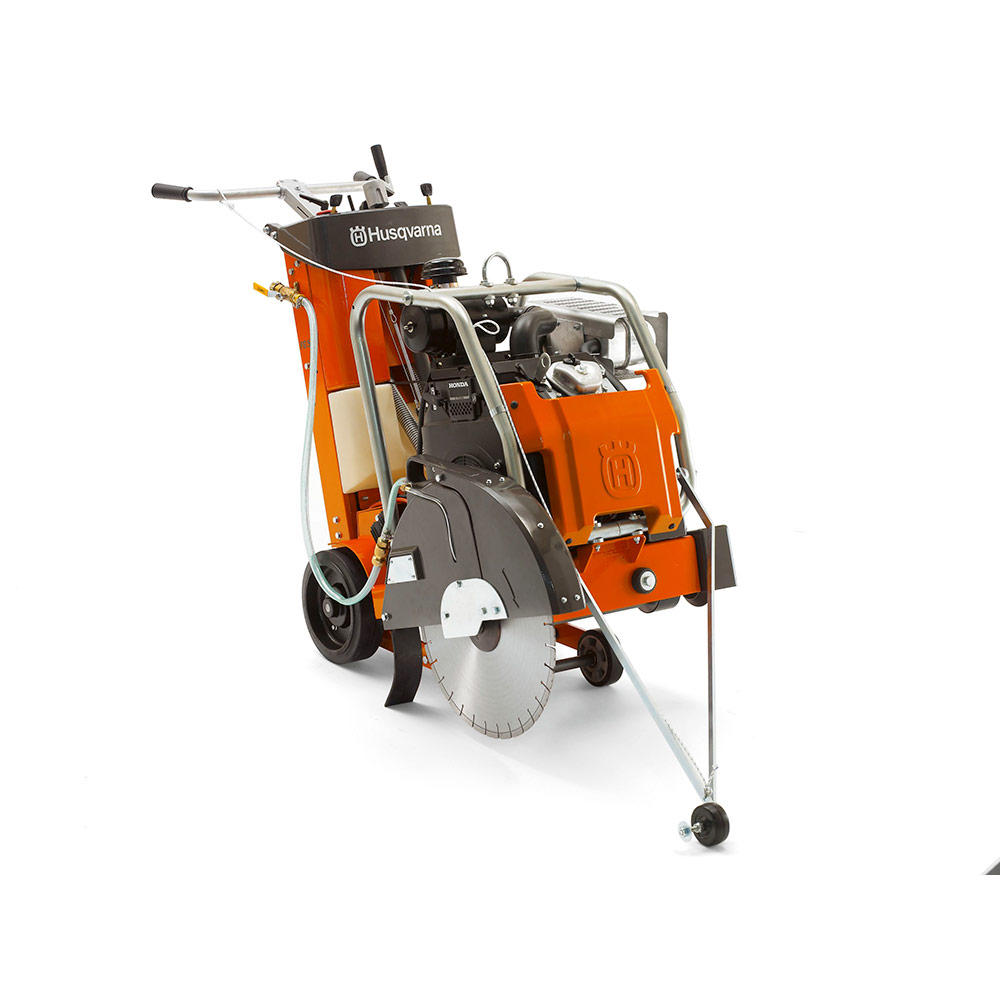

Series of floor saws with engine options from 13 to 24 hp. The floor saws are developed with a clear focus on ergonomics and user friendliness, featuring many innovative solutions that make your job easier. Their unique transmission makes them ideal for more demanding jobs, despite their compact size.
Applications
- Self-propelled group of saws perfect for cutting sidewalks, driveways and other small repair or service work.
Benefits
- Patented engine and bladeshaft mounting system reduces vibration for improved cutting performance.
- Patented IntelliSeal bladeshaft allows for a minimum of 250 maintenance-free hours and eliminates daily greasing of bearings.
- Dual spring assist raise/lower blade can be mounted left or right side when necessary.
- Belt tensioning system does not require frequent adjustment.
- Optional water tank available.
Features:
- Low Vibrations: All of our small floorsaws have low vibrations. The FS 500- and 400-series has a engine and blade shaft mounting system that gives better cutting performance and also reduce vibrations. Along with the low-vibration handlebar this makes work less tiring for the operator during long shifts.
- Adjustable handles: Provides a closer and more comfortable position to the cutting side for easier alignment and straighter cuts. Handle can also be folded for transport.
- Better power transmission: Specially designed to last longer than conventional belts. Our Poly-V Belt requires less re-tensioning and provides better power transmission.
- IntelliSeal: The patented IntelliSeal blade spindle has four sealed radial bearings for strength and durability. Allows for a minimum of 500 hour maintenance intervals and a 1000 hour limited warranty.
Engine
- Output power (As rated by the engine/motor manufacture): 11.7 hp
- Engine cooling: Air
- Fuel tank volume: 281.7 fl oz
Cutting equipment
- Arbor diameter: 1 in
- Blade depth control: Handwheel
- Blade diameter, max: 20 in
- Cutting depth, max: 7.7 in
Transmission
- Transmission speed forward: 80 fpm
Dimensions
- Product size height: 47.24 in
- Weight: 493 lbs
Specifications
Common Specifications
- Power Source:
- Honda GX630
- Maximum Power, hp (kW):
- 20.8 (16)
- Arbor Size, in (mm):
- 1 (25)
- Bladeshaft Flanges, in (mm):
- 1 3/16 (30)
- Cylinders/ Cycle:
- 2/4
- Fuel Capacity, gal (l):
- 2.2 (8.3)
- Air Filter:
- Dry type dual element cyclone
- Starter:
- Electric
- Engine Cooling:
- Air
- Axle Front/Rear, in (mm):
- 3/4 (19)
- Wheels Front, in (mm):
- 5 x 1 1/2 x 3/4 (127 x 38 x 19)
- Wheels Rear, in (mm):
- 10 x 3 x 7/8 (254 x 76 x 22)
- Blade Guard Type:
- Slip-on with bolt
- Number of Belts:
- 16 rib poly v belt
- Blade Depth Control:
- Spring assist screw feed
- Dimensions uncrated, pointer and blade guard up, handles in, in (mm):
- 66 x 26 x 42 (1,676 x 660 x 1,067)
- Displacement, cu in (l):
- 419 (686)
- Bore/ Stroke, in (mm):
- 3.07/2.83 (78/72)
- Oil Capacity, qt (l):
- 1.5 (1.4)
- Handlebar Adjustment:
- Variable position
- Transmission Type:
- Hydraulic transaxle
- Transmission speeds, fpm:
- 0-80
- Technical Data:
- Download Here
GOLD MEDAL EQUIPMENT WARRANTY
New equipment sold by Husqvarna is warranted to be free from manufacturing defects in normal service for a period of one (1) year from date of purchase by the original consumer purchaser. Component manufacturers offer separate warranty periods. Call Technical Services at 800-365-5040 for complete information.
Husqvarna's obligation under this warranty is expressly limited to the replacement or repair at Husqvarna Construction Products, or at a service facility designated by us, of such part or parts as inspection shall disclose to have been defective.
This warranty does not apply to defects caused by damage, unreasonable use, faulty repairs made by others or defects caused by failure to provide reasonable maintenance, while in the possession of the consumer. Further, the warranty is void if the product, or any of its components, is altered or modified by the consumer or if the product is used in an inappropriate manner or with a blade not recommended by the manufacturer.
Husqvarna offers a 1-year warranty on all products including Soff-Cut® Ultra Early Entry™ saws with the following exceptions:
Large flat saws - 2 years (Diesel and gasoline powered flat saws > 30 hp)
K760/K970/K6500/K6500 Ring - 1 year
All other power cutters - 3 months
KV carts (all) - 3 months
Blade clutch on large flat saws - 6 months
Soff-Cut® electric saws - 3 months
PG530/PG680/PG820 grinders - 2 years, or 1,000 hours*
(*) Whichever comes first.
Wear items are not covered under warranty.
Belts
Bearings**
Cart wheels
Filters
Wheels***
Wear pads
Spark plugs
(**) Except IntelliSeal System
(***) Except delamination
DIAMOND TOOL WARRANTY
Laser Weld Blade/Bit Warranty
If the laser weld or diffusion bond between the segment and the core or barrel fails during the normal useful life of the blade or bit, the blade or bit will be replaced FREE OF CHARGE.
Brazed Blade/Bit Warranty
If the brazed bond between the segment and the core or barrel fails within the first .050'' of segment wear, the blade or bit will be repaired or replaced FREE OF CHARGE.
Continuous Rim Blade Warranty
If the bond between the diamond rim and core fails during the normal useful life of the blade, the blade will be replaced FREE OF CHARGE.
