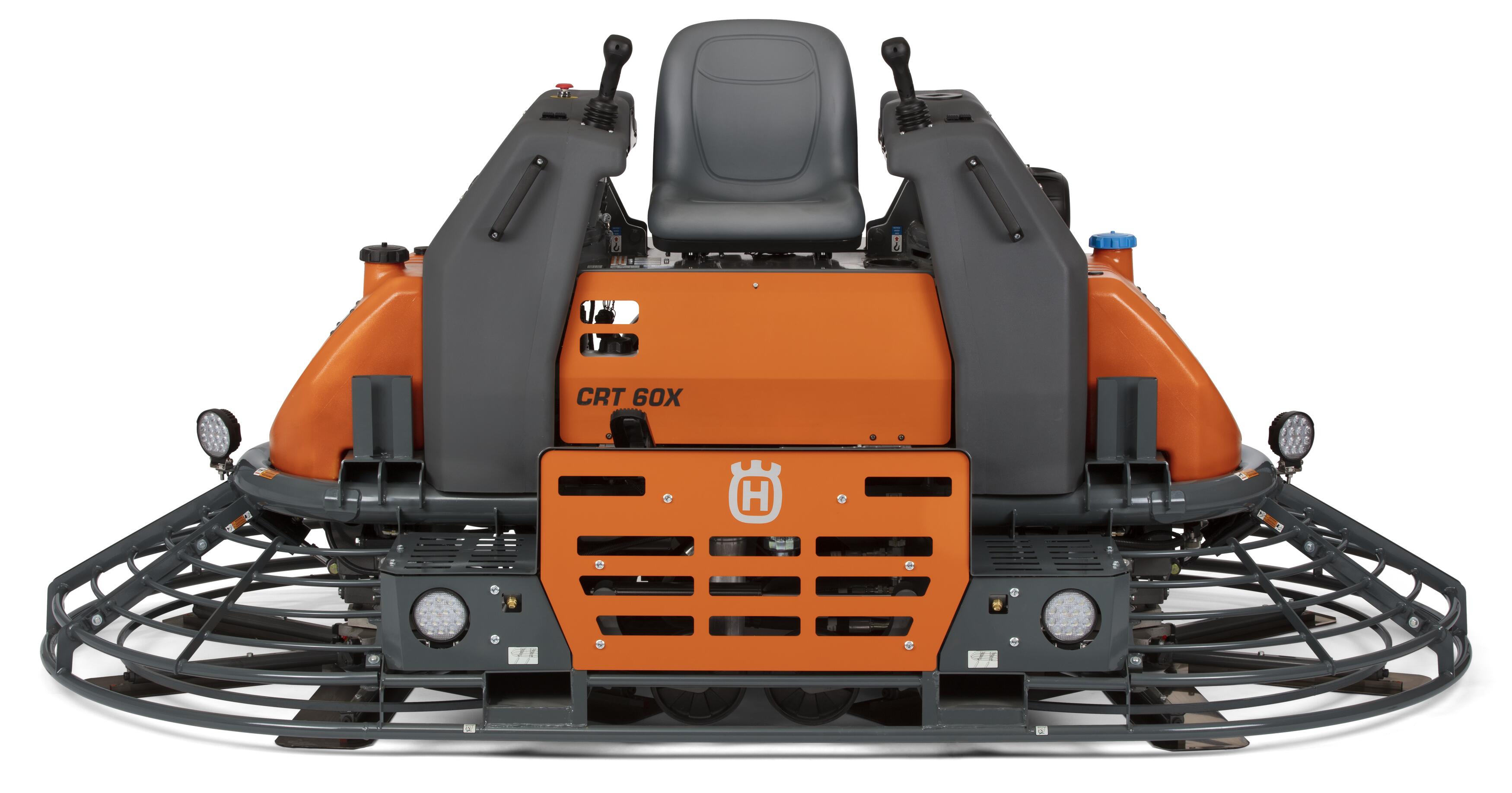

The innovative technology of the ride-on trowel Husqvarna CRT 60X features our most powerful hydraulic drive system optimized for panning and high friction applications from 20,000 sq ft up to 50,000 sq ft. The patented computer controller constantly monitors the engine speed and adjusts the hydraulic load at the same time. The power steering via joysticks enables accurate maneuvering and virtually fatigue-free working. The patented hydraulic wheel kit makes it possible to change float pans or blades easily without the need of a crane or fork lift.
Comes with:
- Trowel
- Twelve Combination Blades
- Operators Manual
| OPERATING FLUIDS | Imperial | Metric |
| Tank capacity | 12,0 gal US | 45,40 l |
| Water tank capacity | 12,0 gal US | 45,4 l |
| ENGINE | Imperial | Metric |
| Power rating max. | 73,8 hp | 55,0 KW |
| Engine operating mode | four-stroke | four-stroke |
| Cooling | water-cooling | water-cooling |
| Operating Engine speed | 2.600 1/min | 2.600 1/min |
| Fuel consumption | 3,3 GPH US | 12,50 L/hr |
| Idling speed | 1.000 1/min | 1.000 1/min |
| Engine speed (Power max.) | 2.600 1/min | 2.600 1/min |
| Engine type | Diesel engine | Diesel engine |
| Cylinder | 4 | 4 |
| Engine Manufacturer | Kohler | Kohler |
| Running time at 100% | 3,6 hrs | 3,6 hrs |
| Cylinder capacity | 151,5 Inch3 | 2.482 cm3 |
| Tank capacity | 12,0 gal US | |
| Fuel | Diesel EN 590 | Diesel EN 590 |
| Oil filling max. | 2,2 gal US | 8,50 l |
| SHIPPING AND STORAGE | Imperial | Metric |
| Width for shipping | 67,5 " | 1.715 mm |
| Shipping weight | 2.976,2 lb | 1.350,00 kg |
| Length for shipping | 130,5 " | 3.315 mm |
| Height for shipping | 65,0 " | 1.651 mm |
| MECHANICAL - OUTPUT DETAILS | Imperial | Metric |
| RPM -area | 25 - 132 1/min | 25 - 132 1/min |
| MECHANICAL DETAILS | Imperial | Metric |
| Length Blades (Finsh) | 23,0 " | 584 mm |
| Width Blades (Finsh) | 6,0 " | 152 mm |
| Operating weight | 2.722,7 lb | 1.235,0 kg |
| Troweling diameter | 59,0 " | 1.499 mm |
| Length | 127,0 " | 3.226 mm |
| Length Blades (Combination) | 23,0 " | 584 mm |
| Pitch range | 0 - 25 ° | 0 - 25 ° |
| Width Blades (Combination) | 8,0 " | 203 mm |
| Height | 57,0 " | 1.448 mm |
| Diameter Float Pan | 60,0 " | 1.524 mm |
| Width | 65,0 " | 1.651 mm |
| Quantity of blades | 12 | 12 |
