PRODUCT DESCRIPTION

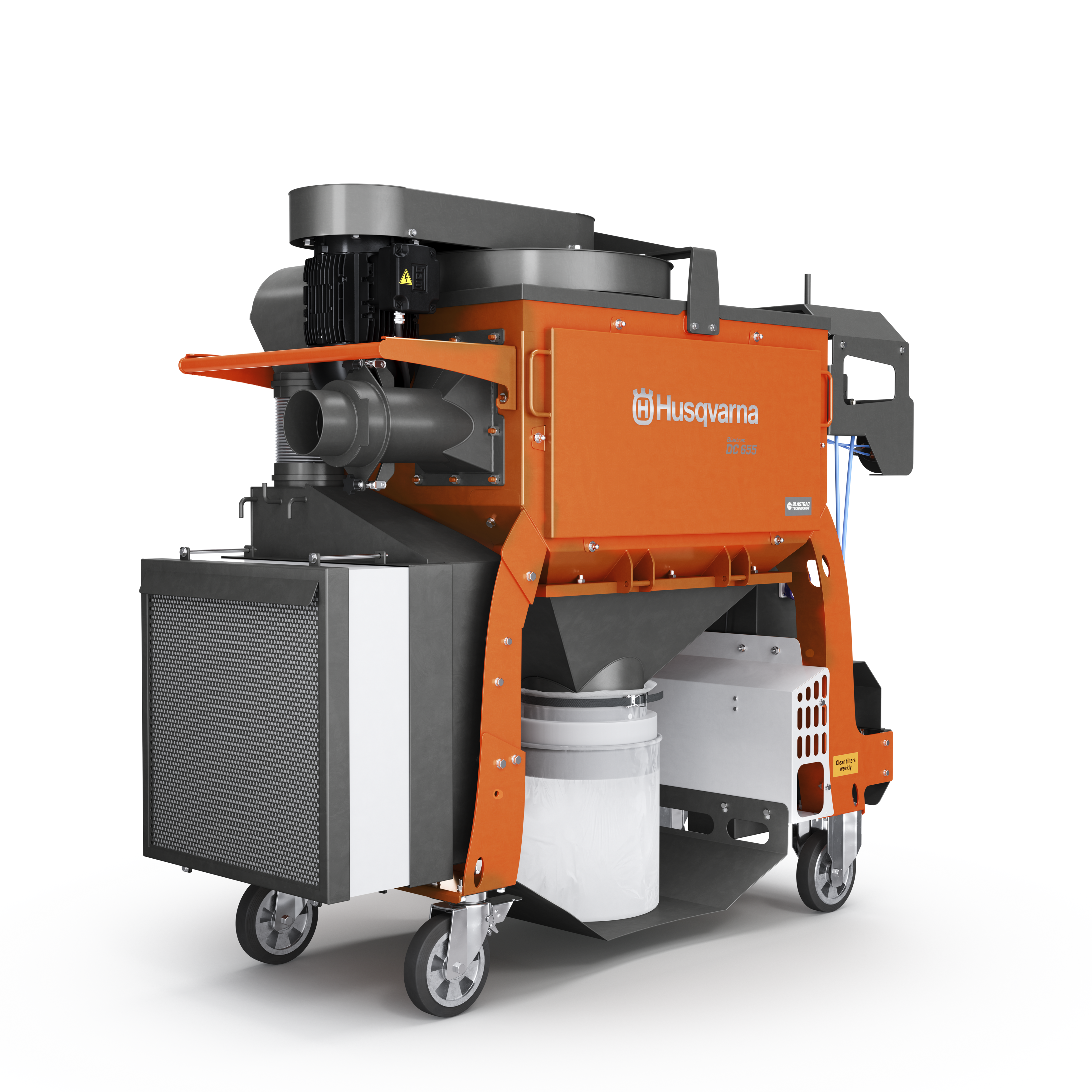

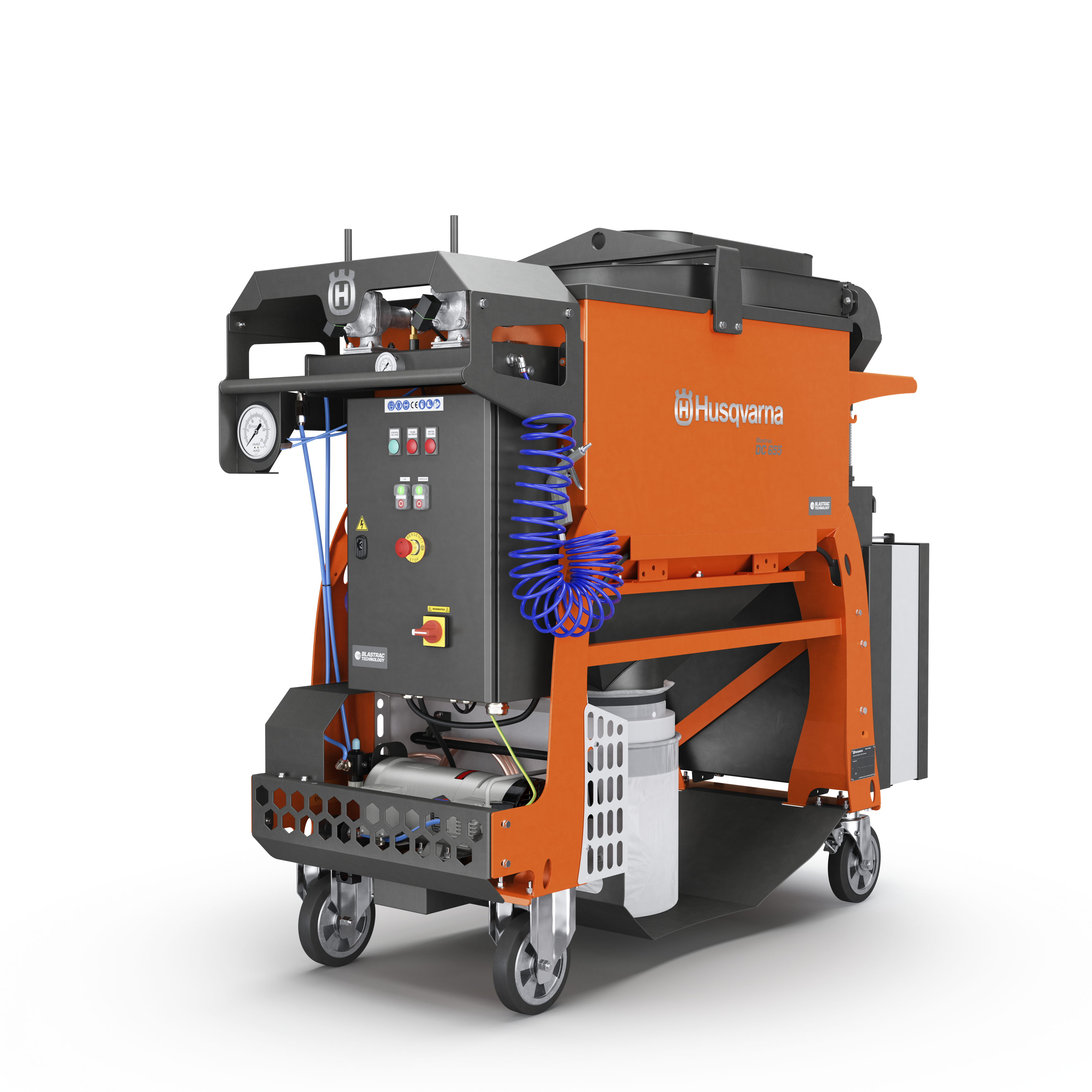

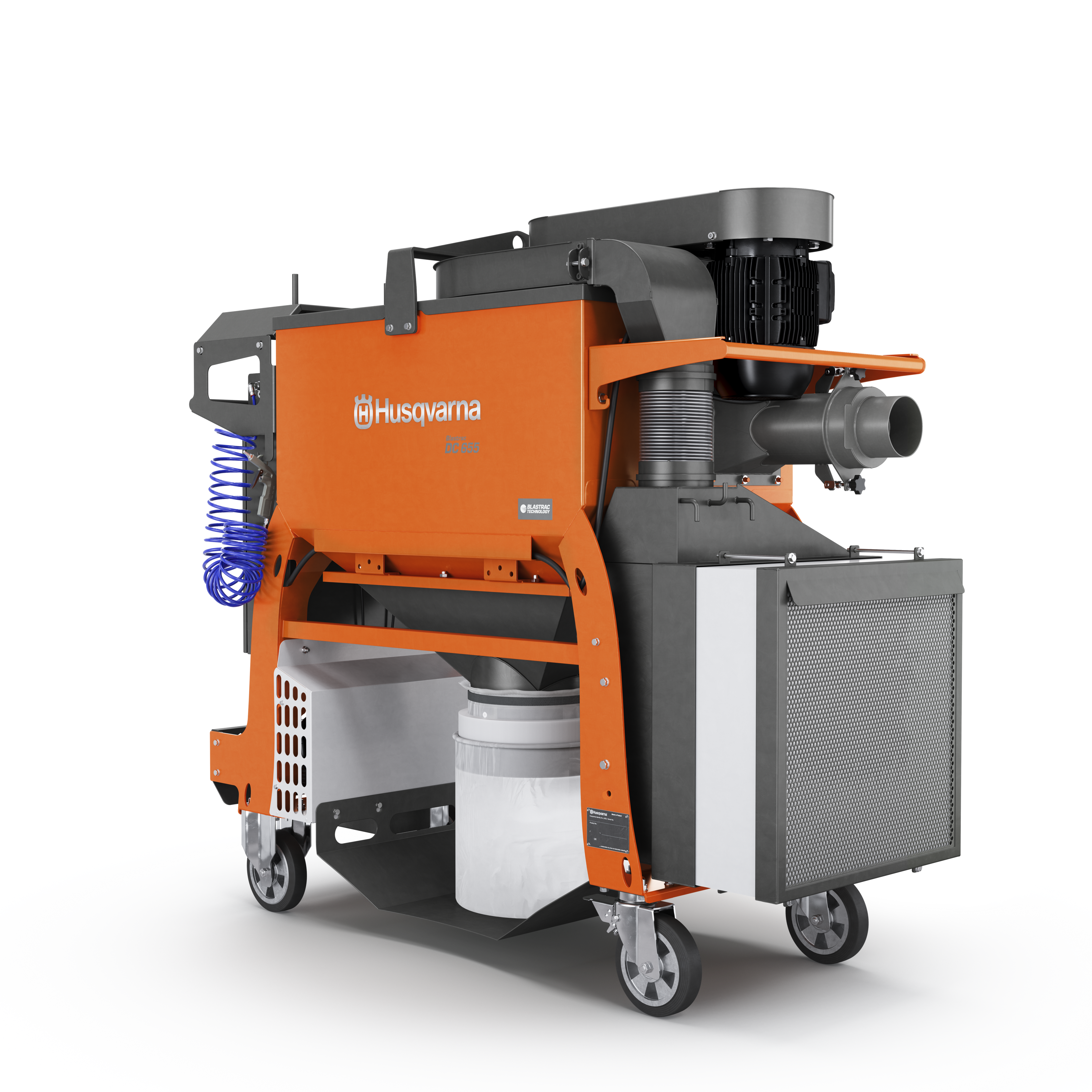

The Husqvarna Blastrac DC 655 dust collector is a compact and insulated unit, easy to transport. The powerful heavy duty dust collection system has a compact design making it easy to maneuver. It combines power, efficiency, and productivity in one durable machine and is ideally suited for use with large size shot blasting and steel blasting machines. It is equipped with six M-class cartridge filters and an optional H14 HEPA filter kit can be added. Blastrac DC 655 is equipped with a dustbin kit. It can also be equipped with either with a Longopac system or a big bag system. The filters are automatically cleaned thanks to the pulse filter cleaning system.
Features & Benefits

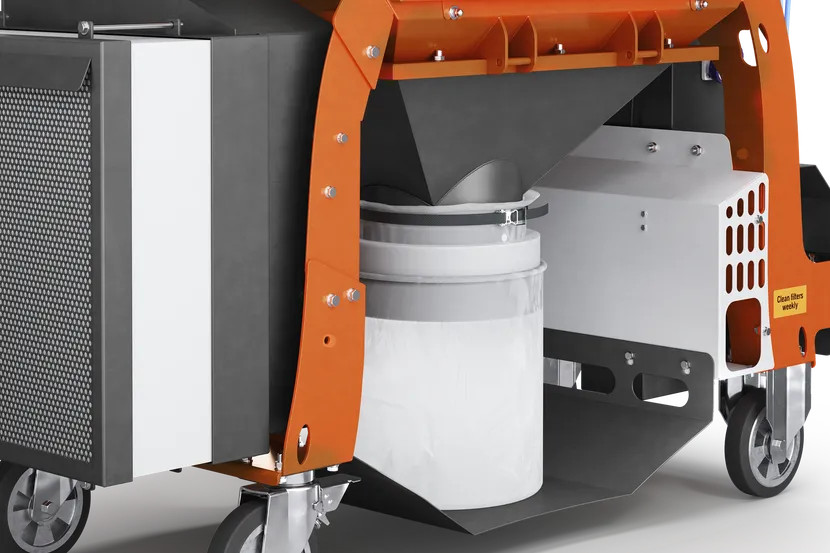

- Flexible Dust Collection System - The dust collector is standard equipped with a dustbin system. optional it can be equipped with either a longopac system or a big bag system.
- Efficient Automatic Filter Cleaning - The dust collector is equipped with a high performance compressor. the filters are cleaned by an automatic pulse filter cleaning system.

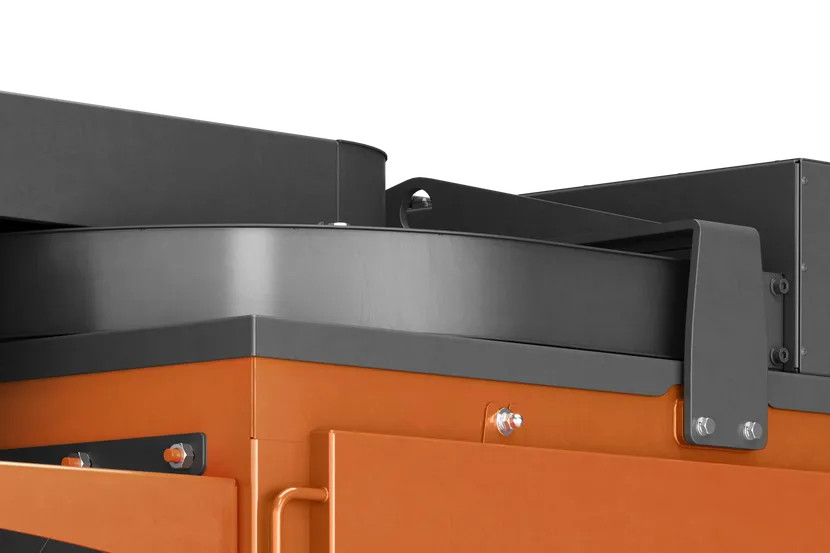

- Easy to Lift - The machine has one ergonomic lifting point on top of the machine for easy transportation.

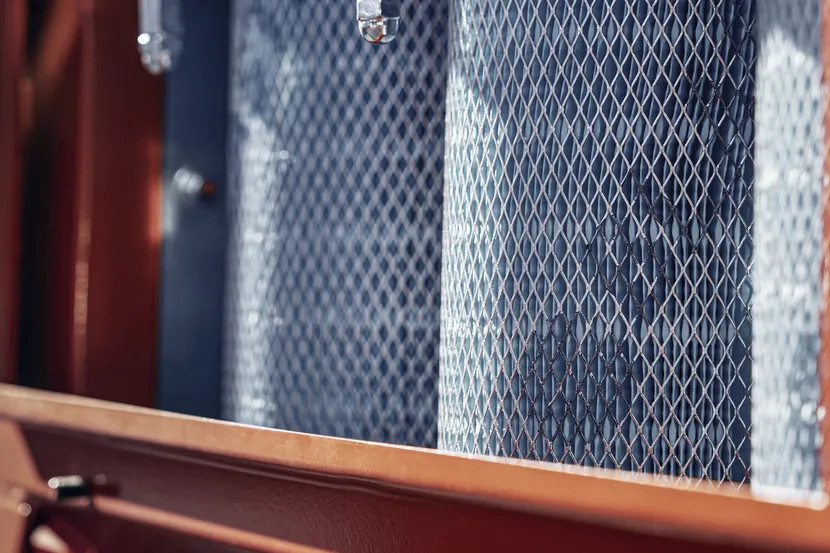

- Six easy to replace filters - The dust collector is equipped with six M-Class cartridge filters which are very easy to replace. an optional H14 filter kit can be added.

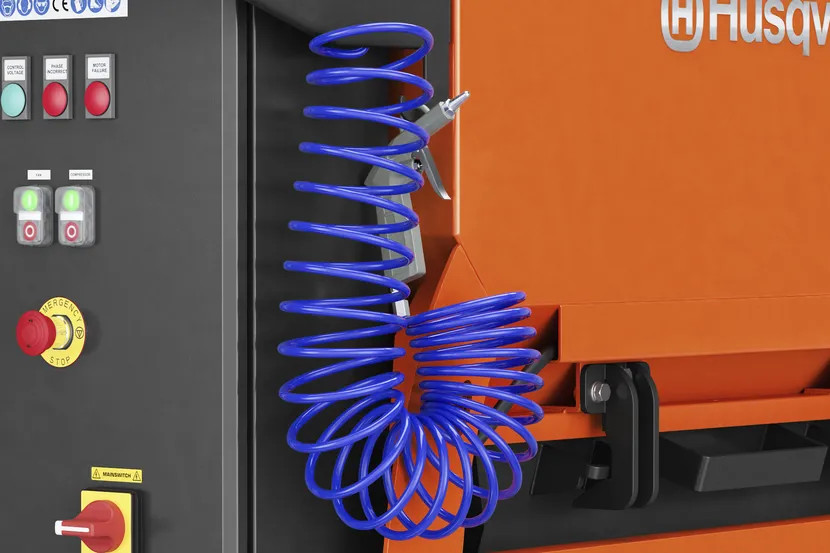

- Easy Cleaning - The dust collector has an on board air pistol for cleaning purposes.
Specification
|
ALL PRODUCTS SPECIFICATION |
DUSTBIN 970685205 |
LONGOPAC 970685206 |
|---|---|---|
| ENGINE | ||
| Power source | Corded | Corded |
| MOTOR | ||
| Rated input power | 8.3 hp | 8.3 hp |
| Phases | 3 ph | 3 ph |
| Voltage | 240-480/277 V | 240-480/277 V |
| Rated current | 37 or 67 A | 37 or 67 A |
| Frequency | 60 Hz | 60 Hz |
| SPECIFICATIONS | ||
| Air Flow | 5,436.8 cfm | 5,436.8 cfm |
| Container capacity | 22 gal (US) | - |
| DIMENSIONS | ||
| Product size length | 68 in | 68 in |
| Product size width | 29.8 in | 29.8 in |
| Product size height | 64.7" | 64.7" |
| Weight | 1,060 lbs | 1,053 lbs |
