The Blastrac DC 655 dust collector is a compact and insulated unit, easy to transport. The powerful heavy duty dust collection system has a compact design making it easy to manoeuvre. It combines power, efficiency, and productivity in one durable machine and is ideally suited for use with large size shot blasting and steel blasting machines.
It is equipped with six M-class cartridge filters and an optional H14 HEPA filter kit can be added. Blastrac DC 655 is equipped with a dustbin kit. It can also be equipped with either with a Longopac® system or a big bag system. The filters are automatically cleaned thanks to the pulse filter cleaning system.
Features
- Easily maneuverable, self-propelled machine–forward and reverse
- AC inverted drive-motor with integrated brake for even, down-slope operation on ramps and inclines
- Highly versatile and appropriate for medium to large job sites
- Excellent for industrial floor prep, road and airport maintenance, asphalt blasting, decontamination, and much more
- Labor and time-saving shot blasting process strips, cleans and profiles in one step−cost effective and friendly to the environment
- Operates virtually dust-free when connected to the Blastrac BDC-66 dust collector−healthier for the operator and other workforce
Technical Specifications

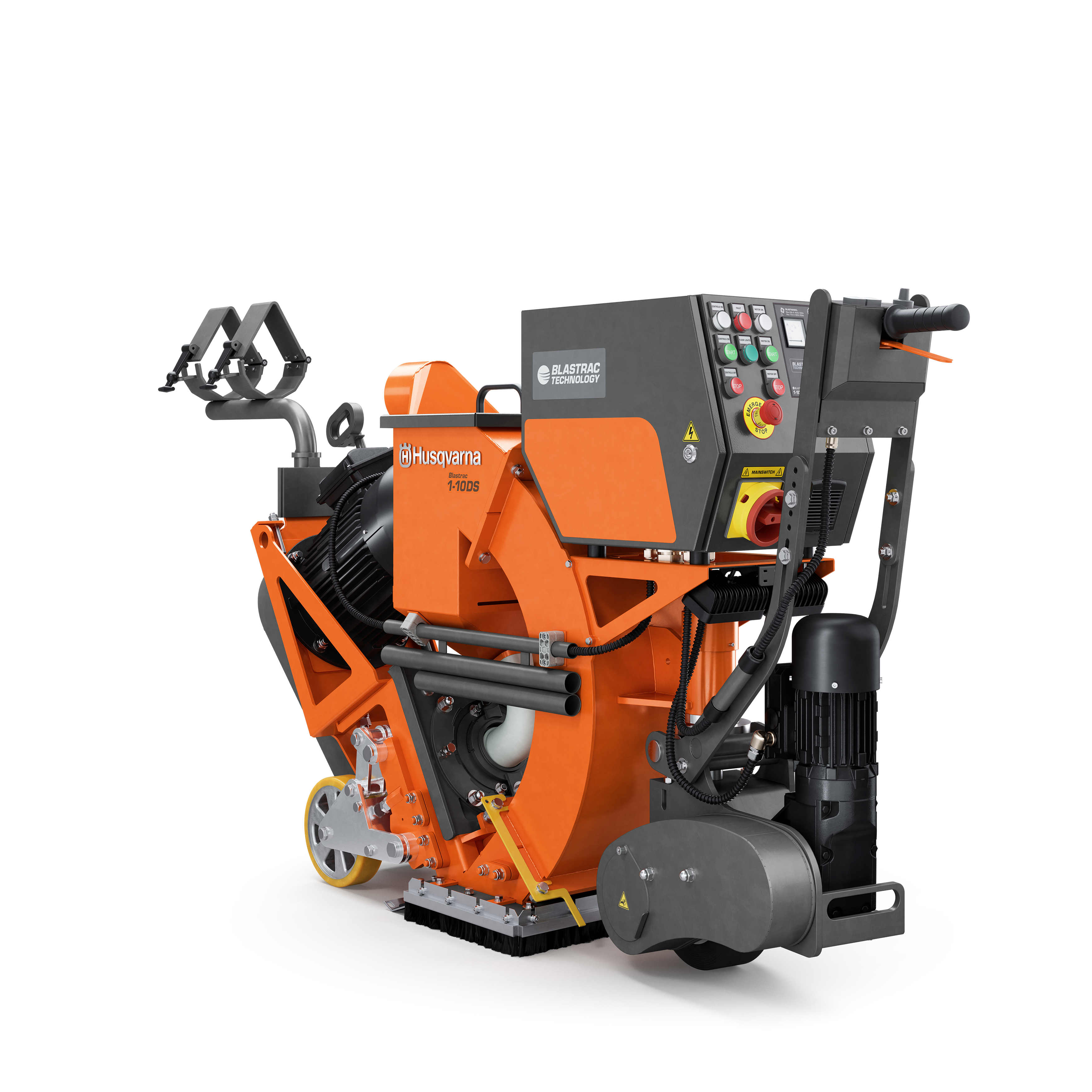

Shotblaster Specs
Blasting Width: 10 in. (254 mm)
Travel Speed: Self-Propelled
Prod. Capacity: Up to 1937 sq.ft/hr (180m2/h) on concrete
Power: 15 hp, Dual Voltage 460V (21 amp), 230V (39 amp), 3ø
Power Cord: 60 ft. (18.28m)
Dust Hose Connection: 5 in. (127mm)
Dimensions: L 64 in. x W 18 in. x H 43 in. (1625mm x 457mm x 1100mm)
Weight: Net 717 lbs (360kg)
Dust Collector Specs
BlastracDC 655 | 3 ph | 60 Hz | HEPA | LONGOPAC | US
Rated input power: 8.3 hp
Phases: 3 ph
Voltage: 240-480/277 V
Rated current: 37 or 67 A
Frequency: 60 Hz
Power source: Corded
Air flow: 5,436.8 cfm
Container capacity: 22 gal
Product size length: 68 in
Product size width: 29.8 in
Product size height: 64.7 in
Weight: 1,060 lbs
