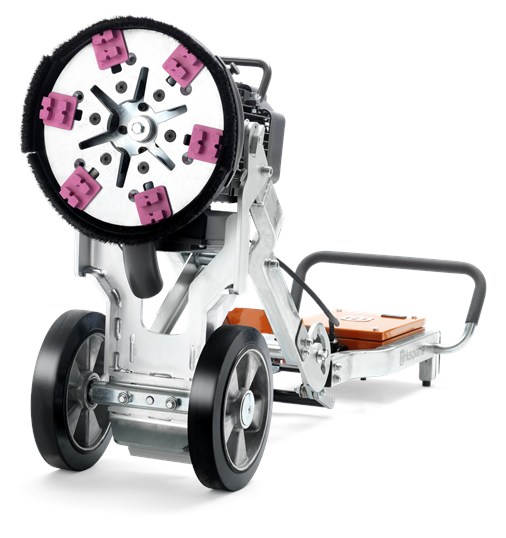

A single disc floor grinder that you can quickly convert for edge grinding on both sides. It efficiently grinds adhesives, paint, epoxy and spackle. With a grinding width of 11 in. it is suitable for small to medium concrete areas. It is available in both 1- and 3-phase versions. Designed to facilitate an ergonomic work position, it is easy and convenient to use. The machine is light and compact and therefore easy to transport and set-up.
Features:
- Edge grinding: of adhesive residue, paint and spackle on medium-sized concrete areas.
- Quick conversion to edge grinding: Easily removable lid covers and wheel setting enable quick conversion to edge grinding on both sides. No tools are required. Allows an upright work position.
- Easy to transport and set-up: The machine is light and fits easily in any car thanks to the compact design and foldable frame and dividable parts.
- Easy removal: Offers efficient grinding of adhesive, paint, epoxy and spackle.
Applications
- Perfect for grinding adhesive residue, paint and epoxy on medium-sized concrete areas.
- Efficiently grinds due to high rpm levels and a wide range of discs available for various applications.
- Convenient conversion to edge grinding.
Benefits
- Controlled edge grinding with the edge function and wall protector.
- The self-adjusting floating cover with brush skirt follows the surface and creates a tight seal to prevent dust from entering the surrounding environment.
- The chassis/frame can be separated from the grinding head in less than 30 seconds. The frame folds tightly and can be wheeled around. Having two separate pieces enables the grinder to fit into the trunk of most vehicles.
- The speed is fixed and no settings are required.
Motor (120V)
- Rated input power: 2 hp
- Rated current: 19 A
- Voltage: 100-120 V
- Phases: 1 ph
- Frequency: 60 Hz
Dimensions
- Product size width: 16.5 in
- Product size height: 39 in
- Weight: 154.3 lbs
Other
- Grinding width: 11 in
- Grinding disc speed min: 0 rpm
- Grinding disc speed max: 1150 rpm
- Direction of rotation: One Direction
- Number of grinding discs: 1
Dimensions
- Product size width: 16.5 in
- Product size height: 39 in
- Weight: 154.3 lbs
Other
- Grinding width: 11 in
- Grinding disc speed min: 0 rpm
- Grinding disc speed max: 1150 rpm
- Direction of rotation: One Direction
- Number of grinding discs: 1
*Light Kit (597925201) and weight kit not included.
- Power Output:
- 110V: 2 hp / 220V: 3hp
- RPM:
- 110V: 1160RPM / 220V: 1720RPM
- Rated Current:
- 20 amps
- Voltage:
- 220 Volts
- Phases:
- 1
- Grinding Width:
- 11"
- Grinding Plate:
- 1 x 11"
- Grinding Pressure:
- 55 lbs
- Dimensions:
- 47" x 16" x 39"
- Weight:
- 176 lbs
- Application:
- Wet or Dry
GOLD MEDAL EQUIPMENT WARRANTY
New equipment sold by Husqvarna is warranted to be free from manufacturing defects in normal service for a period of one (1) year from date of purchase by the original consumer purchaser. Component manufacturers offer separate warranty periods. Call Technical Services at 800-365-5040 for complete information.
Husqvarna's obligation under this warranty is expressly limited to the replacement or repair at Husqvarna Construction Products, or at a service facility designated by us, of such part or parts as inspection shall disclose to have been defective.
This warranty does not apply to defects caused by damage, unreasonable use, faulty repairs made by others or defects caused by failure to provide reasonable maintenance, while in the possession of the consumer. Further, the warranty is void if the product, or any of its components, is altered or modified by the consumer or if the product is used in an inappropriate manner or with a blade not recommended by the manufacturer.
Husqvarna offers a 1-year warranty on all products including Soff-Cut® Ultra Early Entry™ saws with the following exceptions:
Large flat saws - 2 years (Diesel and gasoline powered flat saws > 30 hp)
K760/K970/K6500/K6500 Ring - 1 year
All other power cutters - 3 months
KV carts (all) - 3 months
Blade clutch on large flat saws - 6 months
Soff-Cut® electric saws - 3 months
PG530/PG680/PG820 grinders - 2 years, or 1,000 hours*
(*) Whichever comes first.
Wear items are not covered under warranty.
Belts
Bearings**
Cart wheels
Filters
Wheels***
Wear pads
Spark plugs
(**) Except IntelliSeal System
(***) Except delamination
DIAMOND TOOL WARRANTY
Laser Weld Blade/Bit Warranty
If the laser weld or diffusion bond between the segment and the core or barrel fails during the normal useful life of the blade or bit, the blade or bit will be replaced FREE OF CHARGE.
Brazed Blade/Bit Warranty
If the brazed bond between the segment and the core or barrel fails within the first .050'' of segment wear, the blade or bit will be repaired or replaced FREE OF CHARGE.
Continuous Rim Blade Warranty
If the bond between the diamond rim and core fails during the normal useful life of the blade, the blade will be replaced FREE OF CHARGE.
